1202.02 Registration of Trade Dress

Trade dress constitutes a "symbol" or "device" within the meaning of §2 of the Trademark Act, 15 U.S.C. §1052. Wal-Mart Stores, Inc. v. Samara Bros., 529 U.S. 205, 209-10, 54 USPQ2d 1065, 1065-66 (2000). Trade dress originally included only the packaging or "dressing" of a product, but in recent years has been expanded to encompass the design of a product. It is usually defined as the "total image and overall appearance" of a product, or the totality of the elements, and "may include features such as size, shape, color or color combinations, texture, graphics." Two Pesos, Inc. v. Taco Cabana, Inc., 505 U.S. 763, 764 n.1, 23 USPQ2d 1081, 1082 n.1 (1992).

Thus, trade dress includes the design of a product (i.e., the product shape or configuration), the packaging in which a product is sold (i.e., the "dressing" of a product), the color of a product or of the packaging in which a product is sold, and the flavor of a product. Wal-Mart, 529 U.S. at 205, 54 USPQ2d at 1065 (design of children’s outfits constituted product design); Two Pesos, 505 U.S. at 763, 23 USPQ2d at 1081 (interior of a restaurant was akin to product packaging); Qualitex Co. v. Jacobson Prods. Co., 514 U.S. 159, 34 USPQ2d 1161 (1995) (color alone would be protectible); In re N.V. Organon, 79 USPQ2d 1639 (TTAB 2006) (flavor was analogous to product design and may be protectible unless it is functional). However, this is not an exhaustive list, because "almost anything at all that is capable of carrying meaning" may be used as a "symbol" or "device" and constitute trade dress that identifies the source or origin of a product. Qualitex, 514 U.S. at 162, 34 USPQ2d at 1162. When it is difficult to determine whether the proposed mark is product packaging or product design, such "ambiguous" trade dress is treated as product design. Wal-Mart, 529 U.S. at 215, 54 USPQ2d at 1066. Trade dress marks may be used in connection with goods and services.

In some cases, the nature of a potential trade dress mark may not be readily apparent. A determination of whether the mark constitutes trade dress must be informed by the application content, including the drawing, the description of the mark, the identification of goods or services, and the specimen, if any. If it remains unclear whether the proposed mark constitutes trade dress, the examining attorney may call or email the applicant to clarify the nature of the mark, or issue an Office action requiring information regarding the nature of the mark, as well as any other necessary clarifications, such as a clear drawing and an accurate description of the mark. 37 C.F.R. §2.61(b). The applicant’s response would then confirm whether the proposed mark is trade dress.

When an applicant applies to register a product design, product packaging, color, or other trade dress for goods or services, the examining attorney must separately consider two substantive issues: (1) functionality; and (2) distinctiveness. See TrafFix Devices, Inc. v. Mktg.Displays, Inc., 532 U.S. 23, 28-29, 58 USPQ2d 1001, 1004-05 (2001); Two Pesos, 505 U.S. at 775, 23 USPQ2d at 1086; In re Morton-Norwich Prods., Inc., 671 F.2d 1332, 1343, 213 USPQ 9, 17 (C.C.P.A. 1982) . See TMEP §§1202.02(a)–(a)(viii) regarding functionality and §§1202.02(b)–(b)(ii) and §§1212–1212.10 regarding distinctiveness. In many cases, a refusal of registration may be necessary on both grounds. In any application where a product design is refused because it is functional, registration must also be refused on the ground that the proposed mark is nondistinctive because product design is never inherently distinctive. However, since product packaging may be inherently distinctive, in an application where product packaging is refused as functional, registration should also be refused on the ground that the proposed mark is nondistinctive. Even if it is ultimately determined that the product packaging is not functional, the alternative basis for refusal may stand.

If a proposed trade dress mark is ultimately determined to be functional, claims and evidence that the mark has acquired distinctiveness or secondary meaning are irrelevant and registration will be refused. TrafFix , 532 U.S. at 33, 58 USPQ2d at 1007.

With respect to the functionality and distinctiveness issues in the specific context of color as a mark, see TMEP §1202.05(a) and (b).

1202.02(a) Functionality of Trade Dress

In general terms, trade dress is functional, and cannot serve as a trademark, if a feature of that trade dress is "essential to the use or purpose of the article or if it affects the cost or quality of the article." TrafFix Devices, Inc. v. Mktg. Displays, Inc., 532 U.S. 23, 32, 58 USPQ2d 1001, 1006 (2001) (citing Qualitex Co. v. Jacobson Prods. Co., 514 U.S. 159, 165, 34 USPQ2d 1161, 1163-64 (1995)); Inwood Labs., Inc. v. Ives Labs., Inc., 456 U.S. 844, 850, n.10, 214 USPQ 1, 4, n.10 (1982).

1202.02(a)(i) Statutory Basis for Functionality Refusal

Before October 30, 1998, there was no specific statutory reference to functionality as a ground for refusal, and functionality refusals were thus issued as failure-to-function refusals under §§1, 2, and 45 of the Trademark Act, 15 U.S.C. §§1051, 1052, and 1127.

Effective October 30, 1998, the Technical Corrections to Trademark Act of 1946, Pub. L. No. 105-330, §201, 112 Stat. 3064, 3069, amended the Trademark Act to expressly prohibit registration on either the Principal or Supplemental Register of functional matter:

Section 2(e)(5) of the Trademark Act, 15 U.S.C. §1052(e)(5), prohibits registration on the Principal Register of "matter that, as a whole, is functional."
Section 2(f) of the Act, 15 U.S.C. §1052(f), provides that matter that, as a whole, is functional may not be registered even on a showing that it has become distinctive.
Section 23(c) of the Act, 15 U.S.C. §1091(c), provides that a mark that, as a whole, is functional may not be registered on the Supplemental Register.
Section 14(3) of the Act, 15 U.S.C. §1064(3), lists functionality as a ground that can be raised in a cancellation proceeding more than five years after the date of registration.
Section 33(b)(8) of the Act, 15 U.S.C. §1115(b)(8), lists functionality as a statutory defense to infringement in a suit involving an incontestable registration.

These amendments codified case law and the longstanding USPTO practice of refusing registration of functional matter.

1202.02(a)(ii) Purpose of Functionality Doctrine

The functionality doctrine, which prohibits registration of functional product features, is intended to encourage legitimate competition by maintaining a proper balance between trademark law and patent law. As the Supreme Court explained, in Qualitex Co. v. Jacobson Prods. Co., 514 U.S. 159, 164-165, 34 USPQ2d 1161, 1163 (1995):

The functionality doctrine prevents trademark law, which seeks to promote competition by protecting a firm’s reputation, from instead inhibiting legitimate competition by allowing a producer to control a useful product feature. It is the province of patent law, not trademark law, to encourage invention by granting inventors a monopoly over new product designs or functions for a limited time, 35 U.S.C. Sections 154, 173, after which competitors are free to use the innovation. If a product’s functional features could be used as trademarks, however, a monopoly over such features could be obtained without regard to whether they qualify as patents and could be extended forever (because trademarks may be renewed in perpetuity).

In other words, the functionality doctrine ensures that protection for utilitarian product features be properly sought through a limited-duration utility patent, and not through the potentially unlimited protection of a trademark registration. Upon expiration of a utility patent, the invention covered by the patent enters the public domain, and the functional features disclosed in the patent may then be copied by others – thus encouraging advances in product design and manufacture. In TrafFix Devices, Inc. v. Mktg. Displays, Inc., 532 U.S. 23, 34-35, 58 USPQ2d 1001, 1007 (2001), the Supreme Court reiterated this rationale, also noting that the functionality doctrine is not affected by evidence of acquired distinctiveness.

Thus, even when the evidence establishes that consumers have come to associate a functional product feature with a single source, trademark protection will not be granted in light of the public policy reasons stated. Id.

1202.02(a)(iii) Background and Definitions

1202.02(a)(iii)(A) Functionality

Functional matter cannot be protected as a trademark. 15 U.S.C. §§1052(e)(5), (f), 1064(3), 1091(c), 1115(b). A feature is functional as a matter of law if it is "essential to the use or purpose of the article or if it affects the cost or quality of the article." TrafFix Devices, Inc. v. Mktg. Displays, Inc., 532 U.S. 23, 32, 58 USPQ2d 1001, 1006 (2001) (citing Qualitex Co. v. Jacobson Prods. Co., 514 U.S. 159, 165, 34 USPQ2d 1161, 1163-64 (1995)); Inwood Labs., Inc. v. Ives Labs., Inc., 456 U.S. 844, 850 n.10, 214 USPQ 1, 4 n.10 (1982).

While some courts had developed a definition of functionality that focused solely on "competitive need" – thus finding a particular product feature functional only if competitors needed to copy that design to compete effectively – the Supreme Court held that this "was incorrect as a comprehensive definition" of functionality. TrafFix, 532 U.S. at 33, 58 USPQ2d at 1006. The Court emphasized that where a product feature meets the traditional functionality definition – that is, it is essential to the use or purpose of the product or affects its cost or quality – then the feature is functional, regardless of the availability to competitors of other alternatives. Id.; see also Valu Eng'g, Inc. v. Rexnord Corp., 278 F.3d 1268, 1276, 61 USPQ2d 1422, 1427 (Fed. Cir. 2002) ("Rather, we conclude that the [TrafFix] Court merely noted that once a product feature is found functional based on other considerations there is no need to consider the availability of alternative designs, because the feature cannot be given trade dress protection merely because there are alternative designs available" (footnote omitted).)

However, since the preservation of competition is an important policy underlying the functionality doctrine, competitive need, although not determinative, remains a significant consideration in functionality determinations. Valu Eng’g, Inc., 278 F.3d at 1278, 61 USPQ2d at 1428.

The determination that a proposed mark is functional constitutes, for public policy reasons, an absolute bar to registration on either the Principal or the Supplemental Register, regardless of evidence showing that the proposed mark has acquired distinctiveness. See TrafFix, 532 U.S. at 29-33, 58 USPQ2d at 1005-07; In re MK Diamond Prods., Inc., 2020 USPQ2d 10882, at *18-19 (TTAB 2020) (quoting In re Honeywell, Inc., 187 USPQ 576, 578 (TTAB 1975)); see also In re Controls Corp. of Am., 46 USPQ2d 1308, 1312 (TTAB 1998) (rejecting applicant’s claim that "registration on the Supplemental Register of a de jure functional configuration is permissible if the design is ‘capable’ of distinguishing applicant’s goods"). Thus, if an applicant responds to a functionality refusal under §2(e)(5) of the Trademark Act, 15 U.S.C. §1052(e)(5), by submitting an amendment seeking registration on the Supplemental Register that is not made in the alternative, such an amendment does not introduce a new issue warranting a nonfinal Office action. See TMEP §714.05(a)(i). Instead, the functionality refusal must be maintained and made final, if appropriate, under §23(c) and §45 of the Act, 15 U.S.C. §§1091(c), 1127, as that is the statutory authority governing a functionality refusal on the Supplemental Register. Additionally, for functionality refusals, the associated nondistinctiveness refusal must be withdrawn. See In re Heatcon, Inc., 116 USPQ2d 1366, 1370 (TTAB 2015) .

See TMEP §§1202.02(a)(v)–(a)(v)(D) regarding evidentiary considerations pertaining to functionality refusals.

1202.02(a)(iii)(B) "De Jure" and "De Facto" Functionality

Prior to 2002, the USPTO used the terms "de facto" and "de jure" in assessing whether "subject matter" (usually a product feature or the configuration of the goods) presented for registration was functional. This distinction originated with the Court of Customs and Patent Appeals’ decision in In re Morton-Norwich Prods., Inc., 671 F.2d 1332, 213 USPQ 9 (C.C.P.A. 1982) , which was discussed by the Federal Circuit in Valu Eng'g, Inc. v. Rexnord Corp., 278 F.3d 1268, 1274, 61 USPQ2d 1422, 1425 (Fed. Cir. 2002):

Our decisions distinguish de facto functional features, which may be entitled to trademark protection, from de jure functional features, which are not. ‘In essence, de facto functional means that the design of a product has a function, i.e., a bottle of any design holds fluid.’ In re R.M. Smith, Inc., 734 F.2d 1482, 1484, 222 USPQ 1, 3 (Fed. Cir. 1984). De facto functionality does not necessarily defeat registrability. Morton-Norwich, 671 F.2d at 1337, 213 USPQ at 13 (A design that is de facto functional, i.e., ‘functional’ in the lay sense . . . may be legally recognized as an indication of source.’). De jure functionality means that the product has a particular shape ‘because it works better in this shape.’ Smith, 734 F.2d at 1484, 222 USPQ at 3.

However, in three Supreme Court decisions involving functionality – TrafFix Devices, Inc. v. Mktg. Displays, Inc., 532 U.S. 23, 58 USPQ2d 1001 (2001), Wal-Mart Stores, Inc. v. Samara Bros., 529 U.S. 205, 54 USPQ2d 1065 (2000), and Qualitex Co. v. Jacobson Prods. Co., 514 U.S. 159, 34 USPQ2d 1161 (1995) – the Court did not use the "de facto/de jure" distinction. Nor were these terms used when the Trademark Act was amended to expressly prohibit registration of matter that is "functional." Technical Corrections to Trademark Act of 1946, Pub. L. No. 105-330, §201, 112 Stat. 3064, 3069 (1998). Accordingly, in general, examining attorneys no longer make this distinction in Office actions that refuse registration based on functionality.

De facto functionality is not a ground for refusal. In re Ennco Display Sys. Inc., 56 USPQ2d 1279, 1282 (TTAB 2000) ; In re Parkway Mach. Corp., 52 USPQ2d 1628, 1631 n.4 (TTAB 1999) .

1202.02(a)(iv) Burden of Proof in Functionality Determinations

The examining attorney must establish a prima facie case that the proposed trade dress mark sought to be registered is functional to make and maintain the §2(e)(5) functionality refusal. See In re Becton, Dickinson & Co., 675 F.3d 1368, 1374, 102 USPQ2d 1372, 1376 (Fed. Cir. 2012) (citing In re Teledyne Indus., Inc., 696 F.2d 968, 971, 217 USPQ 9, 11 (Fed. Cir. 1982)); Textron, Inc. v. U.S. Int'l Trade Comm'n, 753 F.2d 1019, 1025, 224 USPQ 625, 629 (Fed. Cir. 1985); In re R.M. Smith, Inc., 734 F.2d 1482, 1484, 222 USPQ 1, 3 (Fed. Cir. 1984). To do so, the examining attorney must not only examine the application content (i.e., the drawing, the description of the mark, the identification of goods or services, and the specimen, if any), but also conduct independent research to obtain evidentiary support for the refusal. In applications where there is reason to believe that the proposed mark may be functional, but the evidence is lacking to issue the §2(e)(5) refusal in the first Office action, a request for information pursuant to 37 C.F.R. §2.61(b) must be issued to obtain information from the applicant so that an informed decision about the validity of the functionality refusal can be made.

The burden then shifts to the applicant to present "competent evidence" to rebut the examining attorney’s prima facie case of functionality. See In re Becton, Dickinson & Co., 675 F.3d at 1374, 102 USPQ2d at 1376 (citing In re Teledyne Indus., Inc., 696 F.2d at 971, 217 USPQ at 11); Textron, Inc. v. U.S. Int'l Trade Comm'n, 753 F.2d at 1025, 224 USPQ at 629; In re R.M. Smith, Inc., 734 F.2d at 1484, 222 USPQ at 3. The competent evidence standard requires proof by a preponderance of the evidence. In re Becton, Dickinson & Co., 675 F.3d at 1374, 102 USPQ2d at 1376–77 (citing Cold War Museum, Inc. v. Cold War Air Museum, Inc., 586 F.3d 1352, 1356, 92 USPQ2d 1626, 1628 (Fed. Cir. 2009); Yamaha Int’l Corp. v. Hoshino Gakki Co., 840 F.2d 1572, 1579, 6 USPQ2d 1001, 1006-07 (Fed. Cir. 1988)).

The functionality determination is a question of fact, and depends on the totality of the evidence presented in each particular case. In re Becton, Dickinson & Co., 675 F.3d at 1372, 102 USPQ2d at 1375 (citing In re Bose Corp., 476 F.3d 1331, 1334, 81 USPQ2d 1748, 1751 (Fed. Cir. 2007); Valu Eng'g, Inc. v. Rexnord Corp., 278 F.3d 1268, 1273, 61 USPQ2d 1422, 1424 (Fed. Cir. 2002); In re Morton-Norwich Prods., Inc., 671 F.2d 1332, 1340, 213 USPQ 9, 15 (C.C.P.A. 1982)); In re MK Diamond Prods., Inc., 2020 USPQ2d 10882, at *5 (TTAB 2020). While there is no set amount of evidence that an examining attorney must present to establish a prima facie case of functionality, it is clear that there must be evidentiary support for the refusal in the record. See, e.g., In re Morton-Norwich Prods., Inc., 671 F.2d 1332,at 1342, 213 USPQ 9, at 16-17 (admonishing both the examining attorney and the Board for failing to support the functionality determination with even "one iota of evidence").

If the design sought to be registered as a mark is the subject of a utility patent that discloses the feature’s utilitarian advantages, the applicant bears an especially "heavy burden of showing that the feature is not functional" and " overcoming the strong evidentiary inference of functionality." TrafFix Devices, Inc. v. Mktg. Displays, Inc., 532 U.S. 23, 30, 58 USPQ2d 1001, 1005 (2001); In re MK Diamond Prods., Inc., 2020 USPQ2d 10882, at *5; In re Udor U.S.A., Inc., 89 USPQ2d 1978, 1979-80 (TTAB 2009); see TMEP §1202.02(a)(v)(A).

1202.02(a)(v) Evidence and Considerations Regarding Functionality Determinations

A determination of functionality normally involves consideration of one or more of the following factors, commonly known as the " Morton-Norwich factors":

(1) the existence of a utility patent that discloses the utilitarian advantages of the design sought to be registered;
(2) advertising by the applicant that touts the utilitarian advantages of the design;
(3) facts pertaining to the availability of alternative designs; and
(4) facts pertaining to whether the design results from a comparatively simple or inexpensive method of manufacture.

In re Becton, Dickinson & Co., 675 F.3d 1368, 1374-75, 102 USPQ2d 1372, 1377 (Fed. Cir. 2012) (citing Valu Eng’g, Inc. v. Rexnord Corp., 278 F.3d 1268, 1274, 61 USPQ2d 1422, 1426 (Fed. Cir. 2002)); In re Morton-Norwich Prods., Inc., 671 F.2d 1332, 1340-41, 213 USPQ 9, 15-16 (C.C.P.A. 1982) .

Since relevant technical information is often more readily available to an applicant, the applicant will often be the source of most of the evidence relied upon by the examining attorney in establishing a prima facie case of functionality in an ex parte case. In re Teledyne Indus. Inc., 696 F.2d 968, 971, 217 USPQ 9, 11 (Fed. Cir. 1982); In re Witco Corp., 14 USPQ2d 1557, 1560 (TTAB 1989) . Therefore, in an application for a trade dress mark, when there is reason to believe that the proposed mark may be functional, the examining attorney must perform a search for evidence to support the Morton-Norwich factors. In applications where there is reason to believe that the proposed mark may be functional, the first Office action must include a request for information under 37 C.F.R. §2.61(b), requiring the applicant to provide information necessary to permit an informed determination concerning the functionality of the proposed mark. See In re Babies Beat Inc., 13 USPQ2d 1729, 1731 (TTAB 1990) (holding that registration was properly refused where applicant failed to comply with examining attorney’s request for copies of patent applications and other patent information). Such a request should be issued for most product design marks.

Accordingly, the examining attorney’s request for information should pertain to the Morton-Norwich factors and: (1) ask the applicant to provide copies of any patent(s) or any pending or abandoned patent application(s); (2) ask the applicant to provide any available advertising, promotional, or explanatory material concerning the goods/services, particularly any material specifically related to the features embodied in the proposed mark; (3) inquire of the applicant whether alternative designs are available; and (4) inquire whether the features sought to be registered make the product easier or cheaper to manufacture. The examining attorney should examine the specimen(s) for information relevant to the Morton-Norwich factors, and conduct independent research of applicant’s and competitors’ websites, industry practice and standards, and legal databases such as LexisNexis®. The examining attorney may also consult USPTO patent records.

It is not necessary to consider all the Morton-Norwich factors in every case. The United States Supreme Court held that "[w]here the design is functional under the Inwood formulation there is no need to proceed further to consider if there is a competitive necessity for the feature." TrafFix Devices, Inc. v. Mktg. Displays, Inc., 532 U.S. 23, 29, 58 USPQ2d 1001, 1006 (2001); see also In re Becton, Dickinson & Co., 675 F.3d at 1376, 102 USPQ2d at 1378 (stating that "since the patent and advertising evidence established functionality, the Board did not need to analyze whether alternative designs exist[ed]"); In re MK Diamond Prods., Inc., 2020 USPQ2d 10882, at *17 (TTAB 2020) ("Having found the applied-for mark [was] functional under Inwood, TrafFix, and their progeny without reliance upon the other factors discussed in Morton-Norwich, and because ‘there [was] no requirement that all of the categories of evidence identified in Morton-Norwich appear in every case in order to’ find functionality, . . .[the Board did] not address the evidence in those other categories." (internal citation omitted)); Kohler Co. v. Honda Giken Kogyo K.K., 125 USPQ2d 1468, 1499-1500 (TTAB 2017) (holding the mark as a whole primarily functional because the overall appearance of applicant’s engine configuration was essential to the use or purpose of the engine and affect[ed] its quality and the totality of the record showed the functional features outweighed the decorative and non-functional aspects); In re Loggerhead Tools, LLC, 119 USPQ2d 1429, 1434 (TTAB 2016) (finding that the first two Morton-Norwich factors established that applicant’s applied-for mark is functional, before considering the remaining factors). Moreover, there is no requirement that all four of the Morton-Norwich factors weigh in favor of functionality to support a refusal. See Valu Eng'g, Inc., 278 F.3d at 1276, 61 USPQ2d at 1427 ("once a product feature is found functional based on other considerations there is no need to consider the availability of alternative designs"); In re Pohl-Boskamp GmbH & Co., 106 USPQ2d 1042 (TTAB 2013) (holding the flavor peppermint functional for nitroglycerin lingual spray based on evidence that peppermint oil, which impart[ed] a flavor of peppermint, [could] improve the effectiveness of sublingual nitroglycerin spray); In re Udor U.S.A., Inc., 89 USPQ2d 1978 (TTAB 2009) (affirming the functionality refusal of "a round disk head on a sprayer nozzle" where the third and fourth factors showed that applicant’s competitors manufactured and marketed spray nozzles with similar features, the shape was preferred in the industry, and it appeared efficient, economical, and advantageous, even though applicant’s utility patent and advertising did not weigh in favor of functionality); In re N.V. Organon, 79 USPQ2d 1639 (TTAB 2006) (holding orange flavor for pharmaceuticals to be functional based on applicant’s touting of the utilitarian advantages of the flavor and the lack of evidence of acceptable alternatives, even though the mark was not the subject of a patent or patent application and there was no evidence that the flavor affected the cost of the product); In re Gibson Guitar Corp., 61 USPQ2d 1948 (TTAB 2001) (finding that since there was no utility patent, and no evidence that applicant’s guitar configuration resulted from a simpler or cheaper method of manufacture, these factors did not weigh in Board’s decision).

Evidence that the proposed mark is the subject of a utility patent that discloses the utilitarian advantages of the configuration at issue is strong evidence that the features claimed are functional and can be sufficient in itself to support a functionality refusal. E.g., TrafFix, 532 U.S. at 33, 58 USPQ2d at 1005 ("A utility patent is strong evidence that the features therein claimed are functional."); Poly-America, L.P. v. Ill. Tool Works Inc., 124 USPQ2d 1508, 1519 (TTAB 2017) ("The issue is whether anything in the patent, its specification, or statements made in prosecution disclose the functionality of the marks. Here, they clearly do."); In re Howard Leight Indus., LLC, 80 USPQ2d 1507, 1515 (TTAB 2006) ("[W]e find that applicant's expired utility patent, which specifically discloses and claims the utilitarian advantages of applicant's earplug configuration and which clearly shows that the shape at issue ‘affects the . . . quality of the device,’ is a sufficient basis in itself for finding that the configuration is functional, given the strong weight to be accorded such patent evidence under TrafFix."). See TMEP §1202.02(a)(v)(A) regarding utility and design patents.

It is important that the functionality inquiry focus on the utility of the feature or combination of features claimed as protectable trade dress. Morton-Norwich, 671 F.2d at 1338, 213 USPQ at 13. Generally, dissecting the design into its individual features and analyzing the utility of each separate feature does not establish that the overall design is functional. See 15 U.S.C. §1052(e)(5); Teledyne, 696 F.2d at 971, 217 USPQ at 11. However, it is sometimes helpful to analyze the design from the standpoint of its various features. See Elmer v. ICC Fabricating Inc., 67 F.3d 1571, 1579-80, 36 USPQ2d 1417, 1422-23 (Fed. Cir. 1995) (rejecting the argument that the combination of individually functional features in the configuration resulted in an overall nonfunctional product design); In re R.M. Smith, Inc., 734 F.2d 1482, 1484, 222 USPQ 1, 2 (Fed. Cir. 1984) (affirming the functionality determination, where the Board had initially considered the six individual features of the design, and then had concluded that the design as a whole was functional); In re OEP Enters., Inc., 2019 USPQ2d 309323, at *15 (TTAB 2019) (holding the entire product configuration functional based on the functional role of different components); In re Change Wind Corp., 123 USPQ2d 1453, 1456-61 (TTAB 2017) (holding product configuration functional based on the functional role of the components claimed in applicant’s drawing of the mark).

Where the evidence shows that the overall design is functional, the inclusion of a few arbitrary or otherwise nonfunctional features in the design will not change the result. See In re Becton, Dickinson & Co., 675 F.3d at 1374, 102 USPQ2d at 1376 (citing Textron, Inc. v. U.S. Int’l Trade Comm'n, 753 F.2d 1019, 1026-27, 224 USPQ 625, 630 (Fed. Cir. 1985)); In re Vico Prods. Mfg. Co., 229 USPQ 364, 368 (TTAB 1985) .

In the limited circumstances where a proposed trade dress mark is not functional overall, but contains insignificant elements that are functional, the examining attorney must issue a requirement for an amended drawing and allow applicant to remove or delete the functional elements from the drawing or depict them in broken or dotted lines to indicate that they are not features of the mark. See TMEP §1202.02(c)(i) regarding drawings in trade dress applications.

The question of whether a product feature is "functional" should not be confused with whether that product feature performs a "function" (i.e., it is de facto functional) or "fails to function" as a trademark. See TMEP §1202.02(a)(iii)(B) regarding de facto functionality. Usually, most objects perform a function, for example, a bottle holds liquid and a lamp provides light. However, only certain configurations that allow an object to work better are functional under §2(e)(5). As the Morton-Norwich court noted, "it is the 'utilitarian' design of a 'utilitarian' object with which we are concerned." 671 F.2d at 1338, 213 USPQ at 14. Similarly, a product feature that is deemed not functional under §2(e)(5) may lack distinctiveness such that it fails to function as a trademark under §§1, 2, and 45 of the Trademark Act, 15 U.S.C §§1051, 1052, 1127. See TMEP §§1202.02(b)–(b)(ii) for distinctiveness of trade dress.

1202.02(a)(v)(A) Utility Patents and Design Patents

Utility Patents

Utility patents cover the invention or discovery of a new and useful process, machine, article of manufacture, or composition of matter, or any new and useful improvement thereof. 35 U.S.C. §101.

In TrafFix Devices, Inc. v. Marketing. Displays, Inc., 532 U.S. 23, 29-30, 58 USPQ2d 1001, 1005 (2001), the United States Supreme Court resolved a circuit split regarding the proper weight to be afforded a utility patent in the functionality determination, stating:

A utility patent is strong evidence that the features therein claimed are functional. If trade dress protection is sought for those features the strong evidence of functionality based on the previous patent adds great weight to the statutory presumption that features are deemed functional until proved otherwise by the party seeking trade dress protection. Where the expired patent claimed the features in question, one who seeks to establish trade dress protection must carry the heavy burden of showing that the feature is not functional, for instance by showing that it is merely an ornamental, incidental, or arbitrary aspect of the device.

See In re Becton, Dickinson & Co., 675 F.3d 1368, 1375, 102 USPQ2d 1372, 1377 (Fed. Cir. 2012) (utility patent supported finding that closure cap for blood-collection tubes was functional); In re Bose Corp., 772 F.2d 866, 227 USPQ 1 (Fed. Cir. 1985) (shape of loudspeaker system enclosure held functional per patent disclosure containing evidence of functionality); McGowen Precision Barrels, LLC v. Proof Rsch., Inc., 2021 USPQ2d 559, at *40-41 (TTAB 2021) (utility patent disclosed functional rifle barrel design that resulted from barrel manufacturing process); In re MK Diamond Prods., Inc., 2020 USPQ2d 10882, at *10-11 (TTAB 2020) (utility patents disclosed functional role of perimeter cut-outs or slots in applicant’s circular saw blade configuration); In re OEP Enters., Inc., 2019 USPQ2d 309323, at *9-10 (TTAB 2019) (utility patent disclosed functional umbrella canopy design); In re Change Wind Corp., 123 USPQ2d 1453, 1459-60 (TTAB 2017) (utility patent disclosed functional role of components claimed in configuration of wind turbines); In re Dietrich, 91 USPQ2d 1622 (TTAB 2009) (patent evidence supported bicycle wheel configuration was functional); In re Udor U.S.A., Inc., 89 USPQ2d 1978 (TTAB 2009) (patent claims did not support finding spray nozzle head to be functional).

The Court in TrafFix went on to hold that where the evidence includes a utility patent that claims the product features at issue, it is unnecessary to consider evidence relating to the availability of alternative designs:

There is no need, furthermore, to engage, as did the Court of Appeals, in speculation about other design possibilities, such as using three or four springs which might serve the same purpose. Here, the functionality of the spring design means that competitors need not explore whether other spring juxtapositions might be used. The dual-spring design is not an arbitrary flourish in the configuration of MDI’s product; it is the reason the device works. Other designs need not be attempted.

532 U.S. at 33-34, 58 USPQ2d at 1007 (citation omitted).

Therefore, when presented with facts similar to those in TrafFix (i.e., where there is a utility patent establishing the utilitarian nature of the product design at issue), the examining attorney may properly issue a final functionality refusal based primarily on the utility patent. In re Howard Leight Indus., LLC, 80 USPQ2d 1507, 1515 (TTAB 2006). Where functionality appears to be an issue, in the first Office action, the examining attorney must issue a request for information under 37 C.F.R §2.61(b), requiring the applicant to provide copies of any active, pending, or expired patent(s), and any pending or abandoned patent application(s). See also Valu Eng'g, Inc. v. Rexnord Corp., 278 F.3d 1268, 1279, 61 USPQ2d 1422, 1429 (Fed. Cir. 2002) ("We agree with the Board that an abandoned patent application should be considered under the first Morton-Norwich factor, because an applied-for utility patent that never issued has evidentiary significance for the statements and claims made in the patent application concerning the utilitarian advantages, just as an issued patent has evidentiary significance.").

It is not necessary that the utility patent be owned by the applicant; a third-party utility patent is also relevant to the functionality determination, if the patent claims the features in the product design sought to be registered. See In re MK Diamond Prods., Inc., 2020 USPQ2d 10882, at *5 (citing In re Pohl-Boskamp GmbH & Co., 106 USPQ2d 1042, 1046 n.22 (TTAB 2013); In re Mars, Inc., 105 USPQ2d 1859, 1861 (TTAB 2013); In re Virshup, 42 USPQ2d 1403, 1405 (TTAB 1997)); AS Holdings, Inc. v. H & C Milcor, Inc., 107 USPQ2d 1829, 1834-35 (TTAB 2013); In re Virshup, 42 USPQ2d 1403, 1405 (TTAB 1997); In re Cabot Corp., 15 USPQ2d 1224 (TTAB 1990). In addition, a third-party patent may include other evidence directly related to the functionality of a proposed mark. In In re Pohl-Boskamp GmbH & Co., the applicant sought to register the flavor of peppermint for use in connection with pharmaceutical preparations of nitroglycerin in the form of a lingual spray. 106 USPQ2d at 1043. The examining attorney made of record a third-party patent that described the results of two studies demonstrating that peppermint oil had therapeutic properties in the applicant’s field of goods. Id. at 1046-48. Therefore, the examining attorney may also consult patent databases, including the USPTO’s patent records, to see if utility patents owned by applicant’s competitors disclose the functional advantages of the product design that the applicant seeks to register.

It is important to read the patent to determine whether the patent actually claims the features presented in the proposed mark. If it does, the utility patent is strong evidence that the particular product features claimed as trade dress are functional. But the specification and/or drawings in the patent may also provide strong evidence, even if the feature is not explicitly claimed as part of the invention. See, e.g., In re Becton, Dickinson and Co., 675 F.3d at 1375, 102 USPQ2d at 1377 (there is no requirement "that a patent claim the exact configuration for which trademark protection is sought in order to undermine an applicant's assertion that an applied-for mark is not de jure functional. Indeed, . . . statements in a patent's specification illuminating the purpose served by a design may constitute equally strong evidence of functionality."); In re MK Diamond Prods., Inc., 2020 USPQ2d 10882, at *9-10 ("the Court in [TrafFix] explained that statements in a patent can show that another party’s particular design is functional because it is similar in shape to similar functional features disclosed in the patent"). In contrast, if the features are referenced in the patent, but only as arbitrary or incidental features, then the probative value of the patent as evidence of functionality is substantially diminished or negated entirely. TrafFix, 532 U.S. at 34, 58 USPQ2d at 1007 (noting that where a manufacturer sought to protect arbitrary, incidental, or ornamental features of a product found in the patent claims, such as arbitrary curves in the legs or an ornamental pattern painted on the springs, functionality would not be established if the manufacturer could prove that those aspects did not serve a purpose within the terms of the utility patent); Grote Indus., Inc. v. Truck-Lite Co., 126 USPQ2d 1197, 1206 (TTAB 2018) (finding that utility patent did not show that the six-diode design of vehicle lights was essential to their use or purpose); In re Udor U.S.A., Inc., 89 USPQ2d 1978, 1980-82 (TTAB 2009) (finding that where the patent’s language and a detailed comparison between the identified features of the patent drawing with the visible features of the trademark drawing established that the patent claims involved components neither shown nor described in the trademark design, the utility patent did not support a holding of functionality). Where a utility patent claims more than what is sought to be registered, this fact does not establish the nonfunctionality of the product design, if the patent shows that the feature claimed as a trademark is an essential or integral part of the invention and has utilitarian advantages. Cf. TrafFix, 532 U.S. at 31, 58 USPQ2d at 1006-07 (nothing in the applied-for dual-spring traffic sign design pointed to arbitrary features).

The examining attorney should consider both the numbered claims and the disclosures in the written description, drawings, and abstract of the patent. See McGowen Precision Barrels, LLC v. Proof Rsch., Inc., 2021 USPQ2d 559, at *40 (citing In re Becton, Dickinson & Co., 675 F.3d at 1375, 102 USPQ2d at 1377; In re Howard Leight Indus., LLC, 80 USPQ2d at 1511). The Board has found functionality based on both the claims and/or disclosures. See In re OEP Enters., Inc., 2019 USPQ2d 309323, at *10; Leight, 80 USPQ2d at 1510-11. In In re Howard Leight Industries, LLC, the Board rejected the applicant’s argument that the examining attorney erred in looking to the claims made in applicant’s patent, noting that the Supreme Court in TrafFix repeatedly referred to a patent’s claims as evidence of functionality. 80 USPQ2d at 1510-11. The examining attorney should also consider other evidence described in a patent that is relevant to the functionality of the mark at issue. In re Pohl-Boskamp GmbH & Co., 106 USPQ2d at 1046-47; see also In re Becton, Dickinson & Co., 675 F. 3d at 1375, 102 USPQ2d at 1377 ("[S]tatements in a patent's specification illuminating the purpose served by a design may constitute equally strong evidence of functionality."); In re Loggerhead Tools, LLC, 119 USPQ2d 1429, 1431-32 (TTAB 2016) (indicating that evidence of functionality in a patent was not limited to language in the claims themselves).

Statements regarding utilitarian advantages of the design made in the course of the prosecution of the patent application can also be very strong evidence of functionality. TrafFix, 532 U.S. at 32, 58 USPQ2d at 1006 ("These statements [regarding specific functional advantages of the product design] made in the patent applications and in the course of procuring the patents demonstrate the functionality of the design. MDI does not assert that any of these representations are mistaken or inaccurate, and this is further strong evidence of the functionality of the dual-spring design."); M-5 Steel Mfg., Inc. v. O’Hagin’s Inc., 61 USPQ2d 1086, 1096 (TTAB 2001) .

The fact that the proposed mark is not the subject of a utility patent does not establish that a feature of the proposed mark is nonfunctional. TrafFix, 532 U.S. at 32, 35, 58 USPQ2d at 1006-07; In re Gibson Guitar Corp., 61 USPQ2d 1948, 1950 n.3 (TTAB 2001) .

Design Patents

Design patents cover the invention of a new, original, and ornamental design for an article of manufacture. 35 U.S.C. §171. A design patent is a factor that weighs against a finding of functionality, because design patents by definition protect only ornamental and nonfunctional features. However, ownership of a design patent does not in itself establish that a product feature is nonfunctional, and can be outweighed by other evidence supporting the functionality determination. See In re Becton, Dickinson & Co., 675 F.3d at 1375, 102 USPQ2d at 1377; In re R.M. Smith, Inc., 734 F.2d 1482, 1485, 222 USPQ 1, 3 (Fed. Cir. 1984); In re OEP Enters., Inc., 2019 USPQ2d 309323, at *6-7; In re Caterpillar Inc., 43 USPQ2d 1335, 1339 (TTAB 1997); In re Am. Nat’l Can Co., 41 USPQ2d 1841, 1843 (TTAB 1997); see also In re Loggerhead Tools, LLC, 119 USPQ2d 1429, 1432-33 (TTAB 2016) ("[a]bsent identity between the design patent and proposed mark, . . . , 'similar' design patents lack sufficient evidentiary value" to overcome other evidence showing that the proposed mark was functional, especially in view of a utility patent that disclosed the utilitarian advantages of the claimed feature (quoting In re Becton, Dickinson & Co., 675 F. 3d at 1375, 102 USPQ2d at 1377 )).

1202.02(a)(v)(B) Advertising, Promotional, or Explanatory Material in Functionality Determinations

The applicant’s own advertising touting the utilitarian aspects of its product design or product packaging is often strong evidence supporting a functionality refusal. In re OEP Enters., Inc., 2019 USPQ2d 309323, at *11 (TTAB 2019) (citing Kohler Co. v. Honda Giken Kogyo K.K., 125 USPQ2d 1468, 1502 (TTAB 2017)); AS Holdings, Inc. v. H & C Milcor, Inc., 107 USPQ2d 1829, 1836 (TTAB 2013) (citing In re Becton, Dickinson & Co., 675 F.3d 1368, 1375-76, 102 USPQ2d 1372, 1377-78 (Fed. Cir. 2012); Kistner Concrete Prods., Inc. v. Contech Arch Techs., Inc., 97 USPQ2d 1912 (TTAB 2011); Mag Instrument, Inc. v. Brinkmann Corp., 96 USPQ2d 1701 (TTAB 2010); In re N.V. Organon, 79 USPQ2d 1639 (TTAB 2006); In re Gibson Guitar Corp., 61 USPQ2d 1948 (TTAB 2001); M-5 Steel Mfg., Inc. v. O’Hagin’s Inc., 61 USPQ2d 1086 (TTAB 2001); In re Visual Commc’ns Co., 51 USPQ2d 1141 (TTAB 1999); In re Edward Ski Prods., Inc., 49 USPQ2d 2001 (TTAB 1999); In re Caterpillar Inc., 43 USPQ2d 1335 (TTAB 1997); In re Bio-Medicus Inc., 31 USPQ2d 1254 (TTAB 1993); In re Witco Corp., 14 USPQ2d 1557 (TTAB 1989).

An applicant will often assert that statements in its promotional materials touting the utilitarian advantages of the product feature are mere "puffery" and, thus, entitled to little weight in the functionality analysis. However, where the advertising statements clearly emphasize specific utilitarian features of the design claimed as a mark, the Board will reject such assertions of "puffing." See e.g., In re OEP Enters., Inc., 2019 USPQ2d 309323, at *12; In re Gibson Guitar Corp., 61 USPQ2d 1948, 1951 (TTAB 2001); Goodyear Tire & Rubber Co. v. Interco Tire Corp., 49 USPQ2d 1705, 1716-17 (TTAB 1998) ; In re Bio-Medicus Inc., 31 USPQ2d 1254, 1260 (TTAB 1993); Witco, 14 USPQ2d at 1559-61 (TTAB 1989).

In Gibson Guitar, the Board found the design of a guitar body to be functional, noting that applicant’s literature clearly indicated that the shape of applicant’s guitar produced a better musical sound. 61 USPQ2d at 1951. Applicant’s advertisements stated that "[t]his unique body shape creates a sound which is much more balanced and less ‘muddy’ than other ordinary dreadnought acoustics." Id.

Where functionality appears to be an issue, in the first Office action, the examining attorney must require the applicant under 37 C.F.R. §2.61(b) to provide any available advertising, promotional, or explanatory material concerning the goods or services, particularly any material specifically related to the features embodied in the proposed mark. The examining attorney should also examine the specimen(s), and check to see if the applicant has a website on which the product is advertised or described.

In addition, the examining attorney may check the websites of applicant’s competitors for evidence of functionality. See In re MK Diamond Prods., Inc., 2020 USPQ2d 10882, at *14 (TTAB 2020) (citing In re Becton, Dickinson & Co., 675 F.3d at 1376, 102 USPQ2d at 1378); In re Van Valkenburgh, 97 USPQ2d 1757, 1762-63 (TTAB 2011) ; Gibson Guitar, 61 USPQ2d at 1951. Industry and trade publications and computer databases may also be consulted to determine whether others offer similar designs and features or have written about the applicant’s design and its functional features or characteristics. See In re MK Diamond Prods., Inc., 2020 USPQ2d 10882, at *11-14. In Gibson Guitar, the record included an advertisement obtained from the website of a competitor whose guitar appeared to be identical in shape to applicant’s configuration, touting the acoustical advantages of the shape of the guitar. 61 USPQ2d at 1951.

1202.02(a)(v)(C) Availability of Alternative Designs in Functionality Determinations

An applicant attempting to rebut a prima facie case of functionality will often submit evidence of alternative designs to demonstrate that there is no "competitive need" in the industry for the applicant’s particular product design. See TMEP §1202.02(a)(iii)(A). In order to be probative, the alternative design evidence must pertain to the same category of goods as the applicant’s goods. See, e.g., In re Zippo Mfg. Co., 50 USPQ2d 1852, 1854 (TTAB 1999) ; In re EBSCO Indus. Inc., 41 USPQ2d 1917, 1920 (TTAB 1997) .

However, in TrafFix Devices, Inc. v. Mktg. Displays, Inc., 532 U.S. 23, 58 USPQ2d 1001 (2001), the United States Supreme Court clearly indicated that if the record shows that a design is essential to the use or purpose of a product, or if it affects the cost or quality of the product, it is unnecessary to consider whether there is a competitive need for the product feature. The Court explained:

[W]e have said "in general terms, a product feature is functional, and cannot serve as a trademark, if it is essential to the use or purpose of the article or if it affects the cost or quality of the article." Expanding upon the meaning of this phrase, we have observed that a functional feature is one the "exclusive use of [which] would put competitors at a significant non-reputation-related disadvantage." The Court of Appeals in the instant case seemed to interpret this language to mean that a necessary test for functionality is "whether the particular product configuration is a competitive necessity." . . . This was incorrect as a comprehensive definition. As explained in Qualitex and Inwood a feature is also functional when it is essential to the use or purpose of the device or when it affects the cost or quality of the device . . . Where the design is functional under the Inwood formulation there is no need to proceed further to consider if there is a competitive necessity for the feature.

* * *

There is no need, furthermore, to engage, as did the Court of Appeals, in speculation about other design possibilities, such as using three or four springs which might serve the same purpose. Here, the functionality of the spring design means that competitors need not explore whether other spring juxtapositions might be used. The dual-spring design is not an arbitrary flourish in the configuration of MDI’s product; it is the reason the device works. Other designs need not be attempted.

TrafFix, 532 U.S. at 32-34, 58 USPQ2d at 1006-07 (emphasis added) (citations and additional internal quotations omitted); see also In re Becton, Dickinson & Co., 675 F.3d 1368, 1376, 102 USPQ2d 1372, 1378 (Fed. Cir. 2012) ("[I]f functionality is found based on other considerations, there is ‘no need to consider the availability of alternative designs, because the feature cannot be given trade dress protection merely because there are alternative designs available.’") (quoting Valu Eng’g Inc. v. Rexnord Corp., 278 F.3d 1268, 1276, 61 USPQ2d 1422, 1427 (Fed. Cir. 2002)).

Nonetheless, since the preservation of competition is an important policy underlying the functionality doctrine, competitive need generally remains an important factor in a functionality determination. See Valu Eng'g, Inc., 278 F.3d at 1277, 61 USPQ2d at 1428 ("[I]n determining ‘functionality,’ the Board must assess the effect registration of a mark would have on competition.").

Accordingly, the examining attorney must issue a request for information under 37 C.F.R. §2.61(b) about alternative designs in the initial Office action, i.e., inquire whether alternative designs are available for the feature embodied in the proposed mark and whether the alternatives are more costly to produce.

Where the evidence indicates that the applicant’s configuration is the best or one of a few superior designs available, this evidence will strongly support a finding of functionality. See, e.g., In re OEP Enters., Inc., 2019 USPQ2d 309323, at *14-15 (TTAB 2019) (noting that applicant made no showing that either lower canopies of cutouts, no material at all, and other types of air transmissible materials worked equally as well as the lower mesh canopy in the patented umbrella design, which supported the Board’s determination that the proposed umbrella design was functional); In re Dietrich, 91 USPQ2d 1622, 1636 (TTAB 2009) ("[T]he question is not whether there are alternative designs that perform the same basic function but whether the available designs work ‘equally well.’") (quoting Valu Eng’g, 278 F.3d at 1276, 61 USPQ2d at 1427)); In re N.V. Organon, 79 USPQ2d 1639, 1645-46 (TTAB 2006) (concluding that, since the record showed that orange flavor was one of the most popular flavors for medicine, it could not be said that there were true or significant number of alternatives); In re Gibson Guitar Corp., 61 USPQ2d 1948, 1951 (TTAB 2001) (finding that applicant had not shown there were alternative guitar shapes that could produce the same sound as applicant’s configuration, and noting that the record contained an advertisement obtained from the website of a competitor, whose guitar appeared to be identical in shape to applicant’s configuration, which stated that the shape of the guitar produced a better sound).

A configuration of a product or its packaging that embodies a superior design feature and provides a competitive advantage to the user is functional. In N.V. Organon, 79 USPQ2d at 1648-49, the Board found that by masking the unpleasant taste of the medicinal ingredients in pharmaceuticals, "flavor performs a utilitarian function that cannot be monopolized without hindering competition in the pharmaceutical trade. To allow registration of ‘an orange flavor’ as a trademark would give applicant potentially perpetual protection for this flavor, resulting in hindrance of competition."

Functionality may be established by a single competitively significant application in the recited identification of goods, even if there is no anticompetitive effect in other areas of use, since competitors in that single area could be adversely affected. Valu Eng'g, 278 F.3d at 1278, 61 USPQ2d at 1428 ("[I]f the Board identifies any competitively significant single use in the recited identification of goods for which the mark as a whole is functional, the Board should deny registration.").

If evidence shows the existence of a number of functionally equivalent alternative designs that work "equally well," such that competitors do not need applicant’s design to compete effectively, this factor may not support functionality. Dietrich, 91 USPQ2d at 1636 (citing Valu Eng'g, 278 F.3d at 1276, 61 USPQ2d at 1427). However, once deemed functional under other Morton-Norwich factors, the claimed trade dress cannot be registered merely because there are functionally equivalent alternative designs. Valu Eng'g, 278 F.3d at 1276, 61 USPQ2d at 1427 (citing TrafFix, 532 U.S. at 33-34, 58 USPQ2d at 1007). Existence of comparable alternative designs does not transform a functional design into a nonfunctional design. Id.

1202.02(a)(v)(D) Ease or Economy of Manufacture in Functionality Determinations

"'[A] product feature is functional if it is essential ... to the use or purpose of the [product] or if it affects the cost or quality of the [product].'" TrafFix Devices, Inc. v. Mktg. Displays, Inc., 532 U.S. 23, 32, 58 USPQ2d 1001, 1006 (2001) (emphasis added) (quoting Qualitex Co. v. Jacobson Prods. Co., 514 U.S. 159, 165, 34 USPQ2d 1161, 1163-64 (1995)); Inwood Labs., Inc. v. Ives Labs., Inc., 456 U.S. 844, 850 n.10, 214 USPQ 1, 4 n.10 (1982) (citing Sears, Roebuck & Co. v. Stiffel Co., 376 U.S. 225, 232, 140 USPQ 524, 528 (1964); Kellogg Co. v. Nat’l Biscuit Co., 305 U.S. 111, 122, 39 USPQ 296, 300 (1938)). Therefore, a showing that a product design or product packaging results from a comparatively simple or inexpensive method of manufacture will support a finding that the claimed trade dress is functional.

In many cases, there is little or no evidence pertaining to this factor. However, the examining attorney must still issue a requirement under 37 C.F.R. §2.61(b) for information as to whether the proposed design makes the product simpler or less costly to manufacture, since evidence on this issue weighs strongly in favor of a finding of functionality. See, e.g., TrafFix, 532 U.S. at 32, 58 USPQ2d at 1006; In re Virshup, 42 USPQ2d 1403, 1407 (TTAB 1997) . Statements pertaining to the cost or ease of manufacture may sometimes also be found in informational or advertising materials. See M-5 Steel Mfg., Inc. v. O’Hagin’s Inc., 61 USPQ2d 1086, 1097 (TTAB 2001) (statements in promotional material that applicant’s design results in reduced installation costs supported finding that applicant’s configurations of metal ventilating ducts and vents for tile or concrete roofs were functional).

While evidence showing that a product feature results from a comparatively simple or inexpensive method of manufacture supports a determination that the design is functional, the opposite is not necessarily the case. That is, assertions by the applicant that its design is more expensive or more difficult to make, or that the design does not affect the cost, fails to establish that the configuration is not functional. In re Dietrich, 91 USPQ2d 1622, 1637 (TTAB 2009) ("Even at a higher manufacturing cost, applicant would have a competitive advantage for what is essentially, as claimed in the patents, a superior quality wheel."); In re N.V. Organon, 79 USPQ2d 1639, 1646 (TTAB 2006) . Designs that work better or serve a more useful purpose may, indeed, be more expensive and difficult to produce.

1202.02(a)(vi) Aesthetic Functionality

"Aesthetic functionality" refers to situations where the feature may not provide a truly utilitarian advantage in terms of product performance, but provides other competitive advantages. For example, in Brunswick Corp. v. British Seagull Ltd., 35 F.3d 1527, 1531, 1533, 32 USPQ2d 1120, 1122, 1124 (Fed. Cir. 1994), cert. denied, 514 U.S. 1050 (1995), the Federal Circuit affirmed the Board’s determination that the color black for outboard motors was functional because, while it had no utilitarian effect on the mechanical working of the engines, it nevertheless provided other identifiable competitive advantages, i.e., ease of coordination with a variety of boat colors and reduction in the apparent size of the engines.

The concept of "aesthetic functionality" (as opposed to "utilitarian functionality") has for many years been the subject of much confusion. While the Court of Customs and Patent Appeals (the predecessor to the Court of Appeals for the Federal Circuit) appeared to reject the doctrine of aesthetic functionality in In re DC Comics, Inc., 689 F.2d 1042, 1047-1050, 215 USPQ 394, 399-401 (C.C.P.A. 1982) , the Supreme Court later referred to aesthetic functionality as a valid legal concept in TrafFix Devices, Inc. v. Mktg. Displays, Inc., 532 U.S. 23, 33, 58 USPQ2d 1001, 1006 (2001). The confusion regarding aesthetic functionality stems in part from widespread misuse of the term "aesthetic functionality" in cases involving ornamentation issues, with some courts having mistakenly expanded the category of "functional" marks to include matter that is solely ornamental, essentially on the theory that such matter serves an "aesthetic function" or "ornamentation function." It is this incorrect use of the term "aesthetic functionality" in connection with ornamentation cases that was rejected by the Court of Customs and Patent Appeals. See In re DC Comics, Inc., 689 F.2d 1042, 1047-1050, 215 USPQ 394, 397, 399-401 (C.C.P.A. 1982) (majority opinion and Rich, J., concurring) (holding, in a case involving features of toy dolls, that the Board had improperly "intermingled the concepts of utilitarian functionality and what has been termed ‘aesthetic functionality;’" and rejecting the concept of aesthetic functionality where it is used as a substitute for "the more traditional source identification principles of trademark law," such as the ornamentation and functionality doctrines).

Where the issue presented is whether the proposed mark is ornamental in nature, it is improper to refer to "aesthetic functionality," because the doctrine of "functionality" is inapplicable to such cases. The proper refusal is that the matter is ornamental and, thus, does not function as a mark under §§1, 2, and 45 of the Trademark Act, 15 U.S.C. §§1051, 1052, and 1127. See TMEP §§1202.03-1202.03(g) regarding ornamentation.

The Supreme Court’s use of the term "aesthetic functionality" in the TrafFix case appears limited to cases where the issue is one of actual functionality, but where the nature of the proposed mark makes it difficult to evaluate the functionality issue from a purely utilitarian standpoint. This is the case with color marks and product features that enhance the attractiveness of the product. The color or feature does not normally give the product a truly utilitarian advantage (in terms of making the product actually perform better), but may still be found to be functional because it provides other real and significant competitive advantages and, thus, should remain in the public domain. See Qualitex Co. v. Jacobson Prods. Co., 514 U.S. 159, 165, 34 USPQ2d 1161, 1163-1164 (1995) (stating that a product color might be considered functional if its exclusive use "would put competitors at a significant non-reputation-related disadvantage," even where the color was not functional in the utilitarian sense).

In M-5 Steel Mfg., Inc. v. O’Hagin’s Inc., 61 USPQ2d 1086, 1096 (TTAB 2001) , the Board considered the proper use of the aesthetic functionality doctrine in connection with product designs for metal ventilating ducts and vents for tile or concrete roofs:

This case seems to involve elements of both utilitarian and aesthetic functionality. Here, for example, there is evidence of utility in applicant’s patent application, as well as statements touting the superiority of applicant’s design in applicant’s promotional literature, and statements that applicant’s design results in reduced costs of installation. On the other hand, there is no question that applicant’s roof designs which match the appearance of surrounding roof tiles are more pleasing in appearance because the venting tiles in each case are unobtrusive.

Citing extensively from the TrafFix, Qualitex, and Brunswick cases, the Board concluded that the product designs were functional for a combination of utilitarian and aesthetic reasons. Id. at 1097.

Note that this type of functionality determination – while employed in connection with a normally "aesthetic" feature such as color – is a proper use of the functionality doctrine, necessitating a §2(e)(5) refusal where the evidence establishes that a color or other matter at issue provides identifiable competitive advantages and, thus, should remain in the public domain. In In re Florists’ Transworld Delivery Inc., 106 USPQ2d 1784 (TTAB 2013) , for example, the record included evidence reflecting that, in the floral industry, color has significance and communicates particular messages (e.g., elegance, bereavement, Halloween), which extend to floral packaging. The Board found, therefore, that the examining attorney had demonstrated a competitive need for others in the industry to use black in connection with floral arrangements and packaging therefor and concluded that the proposed mark was functional under §2(e)(5). This is the opposite of an ornamentation refusal, where the matter at issue serves no identifiable purpose other than that of pure decoration.

Generally speaking, examining attorneys should exercise caution in the use of the term "aesthetic functionality," in light of the confusion that historically has surrounded this issue. In most situations, reference to aesthetic functionality will be unnecessary, since a determination that the matter sought to be registered is purely ornamental in nature will result in an ornamentation refusal under §§1, 2, and 45 of the Trademark Act, and a determination that the matter sought to be registered is functional will result in a functionality refusal under §2(e)(5). Use of the term "aesthetic functionality" may be appropriate in limited circumstances where the proposed mark presents issues similar to those involved in the Florists’ Transworld Delivery, M-5 Steel, and Brunswick cases discussed above – i.e., where the issue is one of true functionality under §2(e)(5), but where the nature of the mark makes the functionality determination turn on evidence of particular competitive advantages that are not necessarily categorized as "utilitarian" in nature. Any such use of the term "aesthetic functionality" should be closely tied to a discussion of specific competitive advantages resulting from use of the proposed mark at issue, so that it is clear that the refusal is properly based on the functionality doctrine and not on an incorrect use of "aesthetic functionality" to mean ornamentation.

See TMEP §§1202.05 and 1202.05(b) for additional discussion and case references regarding the functionality issue in connection with color marks.

1202.02(a)(vii) Functionality and Service Marks

Although rare in the context of service mark applications, examining attorneys are not foreclosed from refusing registration based on functionality. In Duramax Marine, LLC v. R.W. Fernstrum & Co., 80 USPQ2d 1780, 1793 (TTAB 2006) , the Board held that a two-dimensional design of a marine heat exchanger (commonly known as a "keel cooler"), was not functional for "manufacture of marine heat exchangers to the order and specification of others." It found "a significant difference between an application to register trade dress in the nature of product design as a mark for the product itself . . . and an application to register a two-dimensional drawing that may look very much like such a product, but is used on labels, catalogs, brochures, and in various other ways as a mark for services;" and stated that "[t]he inquiry regarding functionality may need to be decidedly different" in cases involving a service mark.

The record showed that the keel cooler depicted in the proposed mark was "identical, or nearly so" to the depiction of a keel cooler in applicant’s expired patent; that opposer and at least one other party had been marketing keel coolers very similar to the proposed mark; and that the design sought to be registered appeared in applicant’s catalog of pre-manufactured keel coolers. Id. at 1786. The Board framed the question at issue as "whether any manufacturer of the formerly patented item should be free to utilize, in advertising its goods for sale, a realistic depiction of the item," and stated that:

[W]e must balance against opposer’s argument for the extension of existing case law on functionality [to] what is shown by the record to be long use of the keel cooler depiction by applicant in the manner of a logo. Further, opposer has not discussed whether, when custom manufacturing services are involved, we should still apply the TrafFix [Devices, Inc. v. Mktg. Displays, Inc., 532 U.S. 23, 32, 58 USPQ2d 1001, 1006 (2001)] test for functionality (a three-dimensional product design is functional if it is "essential to the use or purpose of the product or if it affects the cost or quality of the product") to the product that results from purchasing the services, or whether the test should be adapted and focused on whether use of the two-dimensional design to be registered is essential to anyone who would provide the same service, or would, if unavailable, affect the cost or quality of the service.

Id. at 1794.

The Board held that opposer had failed to justify an extension of existing law to cover the circumstances of this case, but stated that its decision "does not foreclose the extension of TrafFix to service marks if circumstances in a future case warrant such an extension." Duramax, 80 USPQ2d at 1794.

1202.02(a)(viii) Functionality and Non-Traditional Marks

In addition to product design and product packaging, the functionality doctrine has been applied to other non-traditional proposed marks, such as sound, color, and flavor, and the same Morton-Norwich analysis, discussed above, applies to these marks. See, e.g., Brunswick Corp. v. British Seagull Ltd., 35 F.3d 1527, 1532, 32 USPQ2d 1120, 1123 (Fed. Cir. 1994), cert. denied, 514 U.S. 1050 (1995) (finding the color black for outboard motors functional because it provided competitive advantages such as ease of coordination with a variety of boat colors and reduction in the apparent size of the engines); In re Florists’ Transworld Delivery Inc., 106 USPQ2d 1784, 1791 (TTAB 2013) (finding the color black for floral packaging functional because there was a competitive need for others in the industry to use black in connection with floral arrangements and flowers in order to communicate a desired sentiment or occasion such as elegance, bereavement, or Halloween); In re Pohl-Boskamp GmbH & Co., 106 USPQ2d 1042 (TTAB 2013) (finding the flavor peppermint functional for nitroglycerin lingual spray based on evidence that peppermint oil, which imparts a flavor of peppermint, can improve the effectiveness of sublingual nitroglycerin spray); In re Vertex Grp. LLC, 89 USPQ2d 1694, 1700 (TTAB 2009) (affirming the refusal to register an alarm sound emitted by personal security alarms in the normal course of operation without showing of acquired distinctiveness); Saint-Gobain Corp. v. 3M Co., 90 USPQ2d 1425, 1447 (TTAB 2007) (deep purple shade for coated abrasives held functional, the Board finding that coated abrasive manufacturers have a competitive need to use various shades of purple, including applicant’s shade, and that "[i]n the field of coated abrasives, color serves a myriad of functions, including color coding, and the need to color code lends support for the basic finding that color, including purple, is functional in the field of coated abrasives having paper or cloth backing."); In re N.V. Organon, 79 USPQ2d 1639, 1645-46 (TTAB 2006) (finding the flavor orange functional for pharmaceuticals where the evidence showed the flavor served to mask the otherwise unpleasant taste of the medicine flavor); see also Qualitex Co. v. Jacobson Prods. Co., 514 U.S. 159, 165, 34 USPQ2d 1161, 1163-1164 (1995) (stating that a product color might be considered functional if its exclusive use "would put competitors at a significant non-reputation-related disadvantage," even where the color was not functional in the utilitarian sense); TMEP §§1202.02(a)(vi) and 1202.05(b) (regarding aesthetic functionality and color marks).

Examining attorneys should also consider the functionality doctrine in relation to other types of non-traditional marks, such as scent. For example, an application to register scent for an air freshener or an application to register the sound of a ring tone for downloadable ring tones must be refused as functional, as the proposed marks are essential to the use or purpose of the goods. Cf. Vertex, 89 USPQ2d at 1703 (finding that the "ability of applicant’s [security alarms] to emit a loud, pulsing sound is essential to their use or purpose" because the evidence showed that use of a loud sound as an alarm is important and that alternating sound pulses and silence is a "more effective way to use sound as an alarm than is a steady sound").

1202.02(b) Distinctiveness of Trade Dress

Regardless of whether a proposed trade dress mark is refused as functional under §2(e)(5), the examining attorney must also examine the mark for distinctiveness. Trade dress that is not inherently distinctive and that has not acquired distinctiveness under §2(f) must be refused registration. The statutory basis for the refusal of registration on the Principal Register on the ground that the trade dress is nondistinctive is §§1, 2, and 45 of the Trademark Act, 15 U.S.C. §§1051, 1052, and 1127, for trademark applications, or §§1, 2, 3, and 45 of the Trademark Act, 15 U.S.C. §§1051, 1052, 1053, and 1127, for service mark applications.

In Wal-Mart Stores, Inc. v Samara Bros., 529 U.S. 205, 215, 54 USPQ2d 1065, 1069 (2000), the Supreme Court distinguished between two types of trade dress – product design and product packaging. If the trade dress falls within the category of product "design," it can never be inherently distinctive. Id. at 212, 54 USPQ at 1068 ("It seems to us that design, like color, is not inherently distinctive."). Moreover, the Court held that in close cases in which it is difficult to determine whether the trade dress at issue is product packaging or product design, "courts should err on the side of caution and classify ambiguous trade dress as product design, thereby requiring secondary meaning." Id. at 215, 54 USPQ2d at 1070; see In re Slokevage, 441 F.3d 957, 78 USPQ2d 1395 (Fed. Cir. 2006). (Note: If the trade dress is functional, it cannot be registered despite acquired distinctiveness. TrafFix Devices, Inc. v. Mktg. Displays, Inc., 532 U.S. 23, 33, 58 USPQ2d 1001, 1007 (2001)).

A claim of acquired distinctiveness under §2(f) will not overcome a functionality refusal, but may overcome a nondistinctiveness refusal. For example, if the examining attorney issues a refusal on the basis that a product packaging mark is functional and, in the alternative, is nondistinctive, and the applicant asserts acquired distinctiveness in response, the examining attorney must maintain the previously issued functionality refusal, if appropriate, and determine whether the applicant’s evidence would be sufficient to overcome the nondistinctiveness refusal, if the functionality refusal is ultimately reversed.

If the examining attorney fails to separately address the sufficiency of the applicant’s evidence of acquired distinctiveness, this may be treated as a concession that the evidence would be sufficient to establish distinctiveness, if the mark is ultimately found not to be functional. See In re Dietrich, 91 USPQ2d 1622, 1625 (TTAB 2009) (holding that an examining attorney had "effectively conceded that, assuming the mark is not functional, applicant’s evidence is sufficient to establish that the mark has acquired distinctiveness," where the examining attorney rejected the applicant’s §2(f) claim on the ground that applicant’s bicycle wheel configuration was functional and thus unregistrable even under §2(f), but did not specifically address the sufficiency of the §2(f) evidence or the question of whether the mark would be registrable under §2(f), if it were ultimately found to be nonfunctional). See TMEP §§1209.02(a)(ii) and 1212.02(i) regarding assertion of acquired distinctiveness in response to an Office action and claiming acquired distinctiveness with respect to incapable matter.

1202.02(b)(i) Distinctiveness and Product Design Trade Dress

A mark that consists of product design trade dress is never inherently distinctive and is not registrable on the Principal Register unless the applicant establishes that the mark has acquired distinctiveness under §2(f) of the Trademark Act. Wal-Mart Stores, Inc. v. Samara Bros., 529 U.S. 205, 213-16, 54 USPQ2d 1065, 1069-70 (2000). Therefore, as a matter of law, product design cannot be considered inherently distinctive and cannot be registered without a showing of secondary meaning. Id. at 213–14, 54 USPQ2d at 1069. The United States Supreme Court noted that product design almost invariably serves purposes other than source identification, and that "[c]onsumers are aware . . . that, almost invariably, even the most unusual of product designs -- such as a cocktail shaker shaped like a penguin -- is intended not to identify the source, but to render the product itself more useful or appealing." Id.

In applications seeking registration of marks comprising product design, the examining attorney must refuse registration on the ground that the proposed mark is not inherently distinctive unless the applicant claims that the mark has acquired distinctiveness under §2(f) and provides sufficient evidence to show that the mark has acquired distinctiveness. The ground for the refusal is that the proposed mark consists of nondistinctive product design, and, thus, does not function as a mark under §§1, 2, and 45 of the Trademark Act, 15 U.S.C. §§1051, 1052, 1127. Because product design cannot be inherently distinctive as a matter of law, per Wal-Mart, if the applicant has not claimed acquired distinctiveness, supporting evidence for the refusal is unnecessary. 529 U.S. at 213-16, 54 USPQ2d at 1069-70. If the product design is not functional, the mark may be registered on the Supplemental Register, or, if the applicant shows that the product design has acquired distinctiveness, on the Principal Register under §2(f). See TMEP §§815–816.05 regarding the Supplemental Register, §§1202.02(a)–(a)(viii) regarding functionality, §§1202.02(b)–(b)(ii) regarding distinctiveness, and §§1212–1212.10 regarding acquired distinctiveness. A refusal on the ground that the entire proposed mark is not inherently distinctive generally is not appropriate if the mark includes additional distinctive matter beyond just the product design, such as words and/or images. In such situations, the applicant may be required to disclaim or claim acquired distinctiveness in part as to any non-inherently distinctive elements.

For applications based on §1(b) of the Trademark Act, 15 U.S.C. §1051(b), the examining attorney must issue the nondistinctiveness refusal for a product design mark even if the applicant has not filed an allegation of use. See TMEP §1202.02(d) regarding trade dress in intent-to-use applications. For applications based on §44 or §66(a), even though the applicant does not need to show use in commerce, the same standards regarding product design apply and the examining attorney must issue the nondistinctiveness refusal, assuming acquired distinctiveness has not been established. See TMEP §1010 regarding §44 applications and TMEP §1212.08 regarding distinctiveness in §44 or §66(a) applications.

In distinguishing between product packaging and product design trade dress, Wal-Mart instructs that, in "close cases," courts should classify the trade dress as product design and, thus, require proof of secondary meaning. 529 U.S. at 215, 54 USPQ2d at 1070. In addition, product design can consist of design features that are incorporated in the product and need not implicate the entire product. See id. at 207, 213, 54 USPQ2d at 1066, 1069 (holding a "cocktail shaker shaped like a penguin" is product design, as is "a line of spring/summer one-piece seersucker outfits decorated with appliqués of hearts, flowers, fruits, and the like"); In re Slokevage, 441 F.3d 957, 961, 78 USPQ2d 1395, 1398 (Fed. Cir. 2006) (holding the mark to be product design trade dress where the mark was for clothing and consisted of a label with the words "FLASH DARE!" in a V-shaped background and cut-out areas located on each side of the label with the cut-out areas consisting of a hole in a garment and a flap attached to the garment with a closure device).

Applicants face a heavy burden in establishing distinctiveness in an application to register trade dress. See In re Jasmin Larian, LLC, 2022 USPQ2d 290, at *38 (TTAB 2022); In re MK Diamond Prods., Inc., 2020 USPQ2d 10882, at *19 (TTAB 2020); Kohler Co. v. Honda Giken Kogyo K.K., 125 USPQ2d 1468, 1504 (TTAB 2017); In re Udor U.S.A. Inc., 89 USPQ2d 1978, 1986 (TTAB 2009); In re Ennco Display Sys. Inc., 56 USPQ2d 1279, 1283-84 (TTAB 2000); In re OEP Enters., Inc., 2019 USPQ2d 309323, at *16 (TTAB 2019); see also Duraco Prods., Inc. v. Joy Plastic Enters., Ltd., 40 F.3d 1431, 1453, 32 USPQ2d 1724, 1742 (3d Cir. 1994) ("secondary meaning in a product configuration case will generally not be easy to establish"). A mere statement of five years’ use is generally not sufficient. See, e.g., In re Ennco Display Sys. Inc., 56 USPQ2d at 1284, 1286 (noting the statutory language regarding acquired distinctiveness "is permissive, and the weight to be accorded [evidence of five years of substantially exclusive use] depends on the facts and circumstances of the particular case," and finding evidence of seven to seventeen years of use insufficient to support a claim of acquired distinctiveness). Generalized sales and advertising figures by themselves will usually be insufficient proof of secondary meaning where the promotional material does not use the design alone but instead with other marks. See In re Soccer Sport Supply Co., 507 F.2d 1400, 1403, 184 USPQ 345, 348 (C.C.P.A. 1975) (advertising displaying the design at issue along with word marks lacked the "nexus" that would tie together use of the design and the public’s perception of the design as an indicator of source); In re Mogen David Wine Corp., 372 F.2d 539, 542, 152 USPQ 593, 595 (C.C.P.A. 1967) (where a container design appeared with a word mark, any alleged association of the design with the company "was predicated upon the impression imparted by the [word] mark . . . rather than by any distinctive characteristic of the container per se."); Grote Indus. Inc. v. Truck-Lite Co., 126 USPQ2d 1197, 1213 (TTAB 2018) (where advertising prominently used word mark, consumers were more likely to associate the word mark rather than the design with the source of the goods), judgment rev’d and vacated by consent decree, No. 1:18-cv-00599 (W.D.N.Y. June 8, 2022). "[I]n the context of product design marks, it is imperative that the evidence of acquired distinctiveness 'relate to the promotion and recognition of the specific configuration embodied in the applied-for mark and not to the goods in general.'" In re Jasmin Larian, LLC, 2022 USPQ2d 290, at *39 (quoting In re Change Wind Corp., 123 USPQ2d 1453, 1467 (TTAB 2017)); see In re SnoWizard, Inc., 129 USPQ2d 1001, 1004-5 (TTAB 2018) (citing Wal-Mart Stores Inc. v. Samara Bros., 529 U.S. at 211-13, 54 USPQ2d at 1068-69).

A product design may become generic and thus incapable of functioning as an indicator of source because it is basic or common in an industry or is a mere refinement of a product design commonly used for the relevant goods. In re Jasmin Larian, LLC, 2022 USPQ2d 290, at *5-6 (noting that a design may be deemed incapable of registration where "it is so common in the industry that it cannot be said to identify a particular source" (citing Stuart Spector Designs, Ltd. v. Fender Musical Instruments Corp., 94 USPQ2d 1549, 1555 (TTAB 2009))). These common or basic shapes are not registrable on the Principal Register under §2(f), 15 U.S.C. §1052(f), or on the Supplemental Register under §23(c), 15 U.S.C. §1091(c).

For these incapable product designs, registration on the Principal Register must be refused on the ground that the proposed mark fails to function as a mark, citing Trademark Act §§1, 2, and 45 for trademarks, and §§1, 2, 3, and 45 for service marks. See 15 U.S.C. §§1051, 1052, 1053, 1127. The ground for refusal on the Supplemental Register is that the mark is incapable of functioning as a mark under §§23(c) and 45. See 15 U.S.C. §§1091(c), 1127. A two-step generic inquiry should be applied to product design trade dress under these refusals to determine: (1) "the genus of the goods or services at issue," and (2) "whether the consuming public primarily regards the matter sought to be registered as a category or type of trade dress for the genus of goods or services." In re Jasmin Larian, LLC, 2022 USPQ2d 290, at *6 (citing In re Odd Sox LLC, 2019 USPQ2d 370879, at *6 (TTAB 2019)). See TMEP §1209.01(c)(i) for more information regarding the two-step test for determining whether a proposed mark is generic and the evidence needed to support such refusal.

See TMEP §1212.02(i) regarding acquired distinctiveness with respect to incapable matter.

1202.02(b)(ii) Distinctiveness and Product Packaging Trade Dress

Product packaging trade dress may be inherently distinctive. Wal-Mart Stores, Inc. v. Samara Bros., 529 U.S. 205, 212-13, 54 USPQ2d 1065, 1068 (2000) ("The attribution of inherent distinctiveness to certain . . . product packaging derives from the fact that the very purpose of . . . encasing [a product] in a distinctive packaging, is most often to identify the source of the product").

Therefore, in applications seeking registration of marks comprising product packaging, the examining attorney must assess inherent distinctiveness. If it is lacking, registration must be refused on the Principal Register on the ground that the proposed mark is nondistinctive trade dress under Trademark Act §§1, 2, and 45, 15 U.S.C. §§1051, 1052, 1127, for trademark applications, or under §§1, 2, 3, and 45, 15 U.S.C. §§1051, 1052, 1053, 1127, for service mark applications.

In Wal-Mart Stores, Inc. v. Samara Bros., the U.S. Supreme Court discussed the distinction between the trade dress at issue in Two Pesos, Inc. v. Taco Cabana, Inc., 505 U.S. 763, 23 USPQ2d 1081 (1992), and the product design trade dress (designs for children’s clothing) considered in Wal-Mart:

Two Pesos unquestionably establishes the legal principle that trade dress can be inherently distinctive, but it does not establish that product-design trade dress can be. Two Pesos is inapposite to our holding here because the trade dress at issue, the decor of a restaurant, seems to us not to constitute product design. It was either product packaging – which, as we have discussed, normally is taken by the consumer to indicate origin – or else some tertium quid that is akin to product packaging . . . .

529 U.S. at 215, 54 USPQ2d at 1069 (citation omitted).

The examining attorney should be mindful of the U.S. Supreme Court’s admonishment that where there are close cases, trade dress should be classified as product design for which secondary meaning is always required. Id. at 215, 54 USPQ2d at 1070.

"[A] mark is inherently distinctive if ‘[its] intrinsic nature serves to identify a particular source.’" Id. at 210, 54 USPQ2d at 1068 (citing Two Pesos, Inc., 505 U.S. at 768, 23 USPQ2d at 1083). The test for determining inherent distinctiveness set forth in Seabrook Foods, Inc. v. Bar-Well Foods, Ltd., 568 F.2d 1342, 1344, 196 USPQ 289, 291 (C.C.P.A. 1977), although not applicable to product design trade dress, is still viable in the examination of product packaging trade dress. The examining attorney should consider the following Seabrook factors – whether the proposed mark is:

(1) a "common" basic shape or design;
(2) unique or unusual in a particular field;
(3) a mere refinement of a commonly adopted and well-known form of ornamentation for a particular class of goods viewed by the public as a dress or ornamentation for the goods; or
(4) capable of creating a commercial impression distinct from the accompanying words.

Id.; see, e.g., In re Chippendales USA, Inc., 622 F.3d 1346, 1351, 96 USPQ2d 1681, 1684 (Fed. Cir. 2010) (stating that an abbreviated tuxedo costume consisting of wrist cuffs and a bowtie collar without a shirt "constitute[d] ‘trade dress’ because it was part of the ‘packaging’" for exotic dancing services); Tone Bros., Inc. v. Sysco Corp., 28 F.3d 1192, 1205-07, 31 USPQ2d 1321, 1330-32 (Fed. Cir. 1994) (citing Seabrook, 568 F.2d at 1344, 196 USPQ at 291) (reversing lower court’s summary judgment decision that the shape and appearance of the spice container at issue was not inherently distinctive); In re Odd Sox LLC, 2019 USPQ2d 370879, at *9 (TTAB 2019) (finding rectangular sock packaging that displayed socks side-by-side to be a common shape in the socks industry that was not unique or unusual in the field of socks, and "a mere refinement of the attributes of the existing packaging in the record" that did not create a separate impression from wording on the packaging) (quoting In re Chevron Intell. Prop. Grp. LLC, 96 USPQ2d 2026, 2029 (TTAB 2010)); In re Frankish Enters. Ltd., 113 USPQ2d 1964, 1973 (TTAB 2015) (finding three-dimensional monster truck design, used in connection with monster truck exhibition services, to be analogous to product packaging for the services and unique in the monster truck field); In re Mars, Inc., 105 USPQ2d 1859, 1869-71 (TTAB 2013) (finding packaging configuration for pet food, resembling many cans used in the pet food field, to be a common basic shape, even though it was inverted, and a mere refinement of existing trade dress within the field); In re Chevron Intell. Prop. Grp. LLC, 96 USPQ2d at 2029 (holding "‘three-dimensional, six-sided beveled shape’ [pole spanner design used to promote services] was a mere refinement of a commonly used form of a gasoline pump ornamentation rather than an inherently distinctive service mark for automobile service station services."); In re Brouwerij Bosteels, 96 USPQ2d 1414, 1421-22 (TTAB 2010) (holding that product packaging trade dress in the nature of a beer glass and stand with wording and scrollwork would be perceived as a mere refinement of a commonly known glass and stand rather than an inherently distinctive indicator of source for the goods); In re File, 48 USPQ2d 1363, 1367 (TTAB 1998) (stating that novel tubular lights used in connection with bowling alley services would be perceived by customers as "simply a refinement of the commonplace decorative or ornamental lighting . . . and would not be inherently regarded as a source indicator."); In re J. Kinderman & Sons Inc., 46 USPQ2d 1253, 1255 (TTAB 1998) ("while the designs [of packaging for electric lights for Christmas trees that] applicant seeks to register may be unique in the sense that we have no evidence that anyone else is using designs which are identical to them, they are nonetheless not inherently distinctive."); In re Hudson News Co., 39 USPQ2d 1915, 1923 (TTAB 1996) , aff’d per curiam, 114 F.3d 1207 (Fed. Cir. 1997) ("[f]or the ‘blue motif’ of a retail store to be registrable on the Principal Register without resort to Section 2(f), the trade dress would have to be immediately recognizable as a distinctive way of identifying the source of the store services."); Yankee Candle Co. v. Bridgewater Candle Co., 259 F.3d 25, 42-45, 59 USPQ2d 1720, 1730-32 (1st Cir. 2001) (finding trade dress for common elements of candle labels to be nondistinctive product packaging for which insufficient evidence of acquired distinctiveness had been shown).

Any one of the Seabrook factors, by itself, may be determinative as to whether the mark is inherently distinctive. See Chippendales, 622 F.3d at 1355, 96 USPQ2d at 1687; Chevron, 96 USPQ2d at 2028.

Where the proposed product packaging trade dress is not inherently distinctive, based on the analysis of the Seabrook factors and supporting evidence, and acquired distinctiveness has not been established, registration must be refused. Chippendales, 622 F.3d at 1351-52, 96 USPQ2d at 1684. The examining attorney must establish a prima facie case that the product packaging is not inherently distinctive. Id. at 1350, 96 USPQ2d at 1684. To meet this burden, the examining attorney must, at a minimum, set forth a "‘reasonable predicate’ for [the] position of no inherent distinctiveness," for example, by introducing evidence regarding the first Seabrook factor that competitors use similar basic shapes and designs. In re Pacer Tech., 338 F.3d 1348, 1352, 67 USPQ2d 1629, 1632 (Fed. Cir. 2003) (finding evidence of design patents showing other adhesive container cap designs sufficient to establish prima facie case that applicant’s adhesive container cap was not inherently distinctive). The USPTO is an agency of limited resources, and as such, it cannot be expected to shoulder the burden of conducting market research. Id.

For applications based on §1(b), 15 U.S.C. §1051(b), unless the drawing, the description of the mark, and the examining attorney’s search results are dispositive of the lack of distinctiveness without the need to consider a specimen, applications for product packaging trade dress generally will not be refused registration on the ground of nondistinctiveness until the applicant has filed an allegation of use. See TMEP §1202.02(d). For §44 and §66(a) applications, for which no allegation of use is required, a nondistinctiveness refusal may be issued, if appropriate, based on a review of the drawing, the description of the mark, and any evidence obtained from the examining attorney’s search results. See TMEP §1202.02(e).

Regardless of the basis for filing, if a proposed product packaging mark is inherently distinctive, it may be registered on the Principal Register. See In re Procter & Gamble Co., 105 USPQ2d 1119, 1123, 1126 (TTAB 2012) (holding the overall shape of a container with a cap, and the shape of the cap by itself, inherently distinctive for mouthwash); In re Creative Beauty Innovations, Inc., 56 USPQ2d 1203, 1208 (TTAB 2000) (holding bottle configuration inherently distinctive); In re Fre-Mar Indus., Inc., 158 USPQ 364, 367 (TTAB 1968) ("[A]lthough the particular shape is a commonplace one for flashlights, it is nevertheless so unique and arbitrary as a container in the tire repair field that it may be inherently distinctive and, therefore, by reason of its shape alone, serve to identify applicant’s goods and distinguish them from like goods of others."); In re Int'l Playtex Corp., 153 USPQ 377, 378 (TTAB 1967) (holding container configuration having the appearance of an ice cream cone inherently distinctive packaging for baby pants).

If a proposed product packaging mark is not inherently distinctive, the mark may be registered on either the Principal Register under §2(f), upon proof that the mark has acquired distinctiveness or secondary meaning, or on the Supplemental Register. Distinctiveness or secondary meaning is acquired when the public views the primary significance of the product packaging as identifying the source of the product rather than the product itself. Wal-Mart, 529 U.S. at 211, 54 USPQ2d at 1068. Whether five years’ use is sufficient depends on the degree to which the mark’s elements are unique or common in the field. This is determined by comparing the specific features comprising the mark with the evidence of competitors’ use of similar features for the identified goods or services. The more unique or unusual the features, the more likely that five years’ use may suffice, but the more common or basic the features, the less likely that five years’ use would suffice. See TMEP §1212 regarding claiming acquired distinctiveness and §1212.05 regarding claiming five years of use as proof of distinctiveness.

In certain cases, the applicant’s evidence was found sufficient to support a claim of acquired distinctiveness. See In re World’s Finest Chocolate, Inc., 474 F.2d 1012, 1015, 177 USPQ 205, 207 (C.C.P.A. 1973) (package design held to identify applicant’s candy bars and distinguish them from those of others); Ex parte Haig & Haig Ltd., 118 USPQ 229, 230 (Comm’r Pats. 1958) ("[The decree] recited that because of the original, distinctive and peculiar appearance of the ‘Pinched Decanter’ the brand of whiskey in such bottles had come to be known and recognized by the public, by dealers and by consumers; and that the whiskey contained in such bottles had come to be identified with the ‘Pinched Decanter’ in the minds of the public generally.").

See TMEP §§1212-1212.10 regarding acquired distinctiveness and §§815-816.05 regarding the Supplemental Register.

"[T]he lesser the degree of distinctiveness, the heavier the burden to prove trade dress in the nature of product packaging has acquired distinctiveness." In re Brouwerij Bosteels, 96 USPQ2d 1414, 1424 (TTAB 2010) (citing Yamaha Int’l Corp. v. Hoshino Gakki Co., 840 F.2d 1572, 1580, 6 USPQ2d 1001, 1008 (Fed. Cir. 1988)). Where such trade dress had a lesser degree of distinctiveness, the applicant’s evidence was found, in certain cases, to be insufficient to support a claim of acquired distinctiveness. See e.g., In re Palacio Del Rio, Inc., 2023 USPQ2d 630, at *10-13 (TTAB 2023) (holding evidence of acquired distinctiveness insufficient for common modular building designs of a hotel where the evidence comprised four identical "cookie cutter" customer declarations, a declaration of applicant’s vice-president regarding use in commerce since 1968 when the hotel opened in San Antonio, advertising/promotion figures seeming insubstantial when viewed in connection with the length of use, sales figures provided without industry context, 17 local newspaper or industry trade journal articles and a website discussing the building of the hotel for the HemisFair 1968 Word’s Fair in San Antonio and no "look for" advertising or promotional materials or mention of the hotel’s proposed trade dress as indicators of source of the applied-for hotel services); In re Brouwerij Bosteels, 96 USPQ2d at 1424 (holding evidence of acquired distinctiveness insufficient for a common "Half-Yard" type of beer glass and stand where the evidence comprised use for at least 25 years, ownership of a prior registration for a similar but not legally-equivalent mark, two third-party websites indicating the beer glass is "eye-catching" or "unique," and no advertising or sales figures or "look for" advertising or promotional materials); In re Usher, S.A., 219 USPQ 920, 921 (TTAB 1983) (holding evidence of acquired distinctiveness insufficient for a simple flat- rectangular product packaging for two side-by-side round mint candies where the evidence comprised a single declaration from applicant’s CEO specifying a few years use in commerce, limited sales figures, unclear advertising figures, and no "look for" advertising or promotional materials).

In certain cases, product packaging may be incapable of functioning as an indicator of source. "[T]rade dress that cannot serve as an indicator of source is generic and unprotectable." Sunrise Jewelry Mfg. Corp. v. Fred S.A., 175 F.3d 1322, 1326, 50 USPQ2d 1532, 1535 (Fed. Cir. 1999). For example, packaging that is common or basic in an industry or that is a mere refinement of packaging commonly used on the relevant goods will not be perceived as indicating source and is not registrable on the Principal Register under §2(f) or on the Supplemental Register. See In re Odd Sox LLC, 2019 USPQ2d 370879, at *6 (holding that the same standard used to determine whether product design trade dress was generic "applies equally to product packaging" trade dress); Stuart Spector Designs, Ltd. v. Fender Musical Instruments Corp., 94 USPQ2d 1549, 1555 (TTAB 2009) (noting that a product design may be deemed incapable where it is, "at a minimum, so common in the industry that it cannot be said to identify a particular source."); see also Nora Beverages Inc. v. Perrier Grp. of Am. Inc., 269 F.3d 114, 120, 60 USPQ2d 1038, 1041 (2d Cir. 2001) (affirming the district court’s holding that the water bottle manufactured and sold by Nora was generic because "it was used, with minor variations, throughout the entire market of similar products"); Paddington Corp. v. Attiki Imps. & Distribs., Inc., 996 F.2d 577, 583-84, 27 USP2d 1189, 1193 (2d Cir. 1993) ("[W]here it is the custom of an industry to package products in a particular manner, a trade dress in that style would be generic and therefore not inherently distinctive.").

The ground for refusal on the Principal Register is that the proposed mark fails to function as a mark under §§1, 2, and 45 for trademarks, and under §§1, 2, 3, and 45 service marks. See 15 U.S.C. §§1051, 1052, 1053, 1127. The ground for refusal on the Supplemental Register is that the mark is incapable of functioning as a mark under §§23(c) and 45, 15 U.S.C. §§1091(c), 1127. A two-step generic inquiry should be applied to product packaging trade dress under these refusals to determine: (1) "the genus of goods or services at issue," and (2) "whether the consuming public primarily regards the matter sought to be registered as a category or type of trade dress for the genus of goods or services." In re Odd Sox LLC, 2019 USPQ2d 370879, at *6 (citing Sunrise Jewelry Mfg. Corp., 175 F.3d at 1326-27, 50 USPQ2d at 1536; H. Marvin Ginn Corp. v. Int’l Ass’n of Fire Chiefs, Inc., 782 F.2d 987, 990, 228 USPQ 528, 530 (Fed. Cir. 1986)). See TMEP §1209.01(c)(i) for more information regarding the two-step test for determining whether a mark is generic and the evidence needed to support such refusal.

See TMEP §815.04 regarding refusal of incapable matter and TMEP §1212.02(i) regarding acquired distinctiveness with respect to incapable matter. See also TMEP §1301.02(c) regarding three-dimensional trade dress for service marks.

1202.02(c) Drawings, Descriptions, and Disclaimers in Trade Dress Applications

Applicants often submit drawings and descriptions of marks depicting trade dress and containing matter that is: (1) not part of the mark; (2) functional; (3) nondistinctive and incapable; (4) nondistinctive and capable; (5) inherently distinctive; or (6) a combination of these factors. To ensure proper examination, the drawing and description of such a mark must accurately depict the mark the applicant intends to register. For example, both the drawing and the description of the mark must clearly indicate those portions that are claimed as part of the mark and those that are not.

If the drawing does not meet the requirements of 37 C.F.R. §2.52, the examining attorney must require the applicant to submit a substitute drawing and a substitute description of the mark. The examining attorney may require the applicant to provide additional information, such as pictures of the goods, samples, or other relevant materials pursuant to 37 C.F.R. §2.61(b), to assist in assessing the accuracy and completeness of the drawing and in crafting a comprehensive description of the mark.

1202.02(c)(i) Drawings of Trade Dress Marks

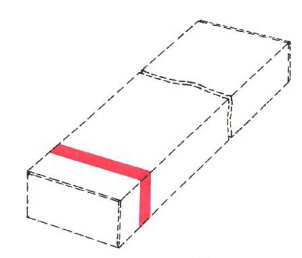

Drawings of three-dimensional product design and product packaging trade dress marks may not contain elements that are not part of the mark (i.e., matter that is functional or incapable of trademark significance). If the mark comprises only a portion of product design or product packaging, solid lines must be used on the drawing to show the elements of the product design or product packaging that are claimed as part of the mark, and broken or dotted lines must be used to indicate the portions that are not claimed as part of the mark. 37 C.F.R. §2.52(b)(4); In re OEP Enters., Inc., 2019 USPQ2d 309323, at *2 (TTAB 2019) (citing Kohler Co. v. Honda Giken Kogyo K.K., 125 USPQ2d 1468, 1488 (TTAB 2017)) (finding drawing of umbrella design trade dress had no broken lines and therefore was claiming all features of the umbrella, including the mesh lower canopy of a double canopy umbrella); see In re Water Gremlin Co., 635 F.2d 841, 844, 208 USPQ 89, 91 (C.C.P.A. 1980) (affirming the functionality of a circular-shaped container for the goods and the requirement for an amended drawing to either delete the representation of the container from the drawing or show it in dotted lines); TMEP §807.08.

Since elements on the drawing shown in broken or dotted lines are not part of the mark, they are generally excluded from the examining attorney’s consideration during any §2(d) (likelihood of confusion) analysis. See In re Homeland Vinyl Prods., Inc., 81 USPQ2d 1378, 1382 (TTAB 2006) .

In rare instances where it is impractical to render certain elements of a mark in dotted or broken lines - for example, if those elements are proportionally so small as to render dotted lines illegible - or if dotted lines would result in an unclear depiction of the mark, the applicant may use solid lines. However, the applicant must insert a statement in the description of the mark identifying these elements and declaring that these elements are not part of the mark and that they serve only to show the position of the mark on the goods, as appropriate.

Usually, a drawing of a trade dress mark is depicted in a three-dimensional manner that gives the appearance of height, width, and depth to the mark. Generally, the drawing shows an illustrated rendering of the product design or product packaging, but a photograph of the product design or product packaging is also acceptable. Drawings consisting of either illustrated renderings or photographs of the proposed trade dress will both be subject to the same drawing requirements and must fairly represent the mark (e.g., the drawing shows matter not claimed as part of the mark in broken or dotted lines and it does not contain extraneous, purely informational matter such as net weight, contents, or business addresses).

If the nature of the mark remains unclear from the record, an examining attorney may clarify whether the mark is three-dimensional trade dress by calling or emailing the applicant, or issuing an Office action containing requirements about the nature of the mark under 37 C.F.R. §2.61(b), for a clear drawing, or for a revised description. Where appropriate, any relevant trade-dress-related refusals (e.g., mark is functional, mark is not inherently distinctive) may also be included in the Office action.

In cases where the drawing depicts a two-dimensional mark that could be interpreted as three-dimensional in nature and the record is unclear, the examining attorney may suggest that the applicant clarify that the mark is two-dimensional in the mark description. See TMEP §808.02. If the mark is two-dimensional in nature, the mark should not be characterized as three-dimensional (e.g., that the mark "appears three-dimensional").

If the applicant is required to submit an amended drawing, the mark description must also be amended accordingly. See TMEP §1202.02(c)(ii) regarding description requirements for trade dress marks.

1202.02(c)(i)(A) Functional Matter

Functional elements of a trade dress mark are never capable of acquiring trademark significance and are unregistrable, much like informational matter. 15 U.S.C. §1052(e)(5); Qualitex Co. v. Jacobson Prods. Co., 514 U.S. 159, 34 USPQ2d 1161 (1995). Therefore, to show that they are not part of the mark, functional elements must be depicted in broken or dotted lines on the drawing to show the position or placement of the claimed portion of the mark. See 37 C.F.R. §2.52(b)(4); In re Water Gremlin Co., 635 F.2d 841, 844, 208 USPQ 89, 91 (C.C.P.A. 1980); In re Famous Foods, Inc., 217 USPQ 177, 177 (TTAB 1983) . A requirement to amend the drawing to depict functional matter in broken or dotted lines is permitted and generally does not constitute material alteration of the mark, regardless of the filing basis. See TMEP §807.14(a). Such an amendment is permissible even in an application under §66(a) because it is not considered an amendment to the mark itself, but rather a change in the manner in which the mark is depicted on the drawing, in order to comply with United States drawing requirements, where functional elements are not considered part of the mark. See TMEP §807.14 regarding material alteration and TMEP §§1904.02(j)-(k) regarding drawings in §66(a) applications.

A functionality refusal must issue in cases where the trade dress mark is overall functional. The statutory basis for the refusal is §2(e)(5) of the Trademark Act, 15 U.S.C. §1052(e)(5). When a trade dress mark is not overall functional, but contains minor or insignificant elements that are functional, the examining attorney must require an amended drawing showing the functional elements in broken or dotted lines rather than in solid lines. See 37 C.F.R. §2.52(b)(4); Water Gremlin, 635 F.2d at 844, 208 USPQ at 91; Famous Foods, 217 USPQ at 177. The Office action must explain that, because the mark includes functional elements, an amended drawing is required showing the functional elements in broken or dotted lines, and a corresponding amended mark description is required indicating the functional elements depicted in broken or dotted lines are not claimed as part of the mark. The applicant must provide the amended drawing regardless of whether the remaining portions of the mark are determined to be registrable. See TMEP §1202.02(a)(v) regarding evidence and considerations regarding functionality determinations and TMEP §1202.02(c)(ii) regarding descriptions of trade dress marks.

Functional matter cannot be disclaimed. See Water Gremlin, 635 F.2d at 844, 208 USPQ at 91 ("The examiner's requirement to delete the [functional] design (or show it in dotted lines) was entirely in order."); Famous Foods, 217 USPQ at 177 (stating that functional "[f]eatures which are not being claimed as part of applicant's asserted [trade dress] mark should be shown in dotted lines"). A disclaimer states that the applicant does not claim exclusive rights to matter in the mark apart from the mark as a whole and allows the applicant to maintain rights in the disclaimed matter as part of its own mark. Therefore, with respect to three-dimensional trade dress marks, elements that are functional, or intended to show position or placement only, must be shown in broken or dotted lines on the drawing. See TMEP §1202.02(c)(iii) regarding disclaiming unregistrable portions of trade dress marks.

1202.02(c)(i)(B) Nondistinctive Matter

Nonfunctional elements of a product design or product packaging trade dress mark that are inherently distinctive, that have acquired distinctiveness, or that are capable but for which acquired distinctiveness has not yet been established, may appear in solid lines on the drawing as part of the mark. Nonfunctional, nondistinctive elements that are capable of trademark significance but for which acquired distinctiveness has not been established must be disclaimed. A disclaimer is appropriate because, while these elements are not source indicators, they may still remain part of the mark. See 15 U.S.C. §§1051 -1052, 1056(a), 1127. The disclaimer must be provided regardless of whether the remaining portions of the mark are determined to be registrable.

Occasionally, a trade dress mark may include elements that are nonfunctional, yet incapable of trademark significance, such as a common or basic shape of a product itself or the packaging in which a product is sold. These elements must be depicted in broken or dotted lines on the drawing because such elements cannot be considered part of the mark. Cf. Traffix Devices v. Mktg. Displays, 532 U.S. 23, 32, 58 USPQ2d 1001, 1006 (2001) (noting that functional features of product design cannot serve as trademarks); In re Famous Foods, Inc., 217 USPQ 177, 177 (TTAB 1983) (noting that functional features of product packaging should be shown in dotted lines). Usually, amendments of drawings to depict incapable elements in broken or dotted lines do not materially alter the mark because the incapable elements are, by definition, not source indicating. See 37 C.F.R. §2.52(b)(4); In re Water Gremlin Co., 635 F.2d 841, 844, 208 USPQ 89, 91 (C.C.P.A. 1980) . Therefore, the examining attorney must issue a requirement for an amended drawing that depicts the incapable elements in broken or dotted lines, and a corresponding amended mark description to reflect that the incapable elements shown in broken or dotted lines are not claimed as part of the mark. See 37 C.F.R. §2.52(b)(4). The applicant must provide the amended drawing regardless of whether the remaining portions of the mark are determined to be registrable.

See TMEP §807.14 regarding material alteration, TMEP §1202.02(c)(ii) regarding descriptions of trade dress marks, TMEP §1011.03 regarding amendment of marks in §44 applications, and TMEP §§1904.02(j)-(k) regarding amendment of marks in §66(a) applications.

1202.02(c)(i)(C) Drawings in §44 and §66(a) Applications

For trade dress marks in §44 and §66(a) applications, an amendment of the drawing to depict functional or incapable matter in broken or dotted lines is permitted and generally not a material alteration of the mark. See TMEP §§807.08 and 1904.02(k). Although the mark in a §44 or §66(a) application cannot be amended, a change in the manner in which the mark is depicted may be permitted, in order to comply with the United States drawing requirements. See TMEP §1011.03 regarding amendment of marks in §44 applications and §1904.02(j)-(k) regarding amendment of marks in §66(a) applications. For instance, since functional matter is not considered source indicating and is never part of the mark, displaying it in broken or dotted lines shows placement of the functional matter in relation to the registrable portions of the mark.

Similarly, in §44 or §66(a) applications, amendments to delete extraneous matter from photographs, or amendments of drawings from photographs to illustrated renderings showing elements of the mark in dotted or broken lines, will be accepted and will not be considered a material alteration of the mark.

1202.02(c)(ii) Descriptions of Trade Dress Marks Required

An application for a trade dress mark must include an accurate description of the mark. See 37 C.F.R. §2.37. If an acceptable statement describing the mark is not in the record, the examining attorney must require the applicant to submit a description to clarify what the applicant seeks to register. The description must adequately describe the mark, with unnecessary matter kept to a minimum. The description must clearly indicate that the mark is "three-dimensional" and constitutes "product design" or "configuration" of the goods themselves or product "packaging" or a "container" in which the goods are sold, or that the trade dress is for services offered (e.g., interior of a restaurant, exterior of a retail establishment, or point-of-sale-display such as a costume used in connection with the services).

If applicable, the description must specify which elements on the drawing constitute the mark and are claimed as part of the mark and which are not. The description of the mark must make clear what any broken or dotted lines represent and include a statement that the matter shown in broken or dotted lines is not claimed as part of the mark. See 37 C.F.R. §2.52(b)(4); TMEP §§808-808.03(f). This information must be included in the description. Statements only in a response to an Office action or elsewhere in the record are insufficient. The description must also avoid use of disclaimer-type language, such as "no claim is made to the …," because of the different legal significance of using broken lines versus submitting a disclaimer. See TMEP §1202.02(c)(iii) regarding disclaimers of unregistrable elements of trade dress marks.

In cases where the drawing depicts a two-dimensional mark that could be interpreted as three-dimensional in nature, an applicant may clarify that the mark is two-dimensional in the mark description. See TMEP §808.02. If the mark is two-dimensional in nature, the applicant should not characterize the mark as three-dimensional (e.g., that the mark "appears three-dimensional").

During the prosecution of a trade dress application, if the applicant is required to submit an amended drawing (e.g., showing broken or dotted lines to depict functional matter, to indicate nondistinctive and incapable matter, or to depict matter otherwise not claimed as part of the mark), the examining attorney must also require a corresponding amended description.

Examples of acceptable language for this purpose are: "The broken lines depicting [describe elements] indicate placement of the mark on the goods and are not part of the mark" or "The dotted lines outlining [the goods] are intended to show the position of the mark on the goods and are not part of the mark."

For example, for the mark below,

Design of mark described as: color blue applied to the cap of the container of the goods, a white background applied to the rest of the container, a blue rectangle with a silver border displayed against the white background, a light blue curving band, and three light blue droplets on the left side of the white background.

an appropriate description (and color claim) of the mark could read:

The colors white, blue, light blue, and silver are claimed as a feature of the mark. The mark consists of the color blue applied to the cap of the container of the goods, a white background applied to the rest of the container, a blue rectangle with a silver border, a light blue curving band, and three light blue droplets. The dotted lines outlining the container and its cap indicate placement of the mark on the goods and are not part of the mark.

For the mark below,

Design of mark described as: a single transverse red stripe applied adjacent to one end of the elongated packaging for the goods.

an appropriate description (and color claim) of the mark would read:

The color red is claimed as a feature of the mark. The mark consists of a single transverse red stripe applied adjacent to one end of the three-dimensional elongated packaging for the goods. The dotted outline of the packaging is intended to show the position of the mark and is not part of the mark.

And for the mark below,

an appropriate description of the mark would read:

The mark consists of a three-dimensional configuration of a stringed musical instrument body. The neck, peghead, and other instrument parts shown in broken lines serve to show positioning of the mark and form no part of the mark.

The examining attorney must ensure that the description statement has been entered into the Trademark database, so that it will be printed in the Official Gazette and on the certificate of registration. See TMEP §817.

See TMEP §§1202.05(d)(i) and (d)(ii) regarding drawings in applications for color marks consisting solely of one or more colors.

1202.02(c)(iii) Disclaimers of Unregistrable Elements of Trade Dress Marks

A disclaimer states that the applicant does not claim exclusive rights to matter in the mark apart from the mark as a whole. TMEP §1213. The applicant maintains rights in the disclaimed matter only as part of its mark. Thus, except in the rare case when a trade dress mark is unitary, unregistrable elements must be either depicted in broken or dotted lines on the drawing or disclaimed, as appropriate. Specifically, elements that are functional or otherwise incapable of trademark significance must be depicted in broken or dotted lines on the drawing. Elements that are nonfunctional but capable of acquiring trademark significance, but for which acquired distinctiveness has not been established, must be disclaimed. See TMEP §§1202.02(c)(iii)(A)–(B) regarding functional and nondistinctive matter that cannot be disclaimed.

Trade dress marks generally are not considered unitary, as each of the elements normally creates a separate commercial impression. As stated in the Federal Circuit decision In re Slokevage, 441 F.3d 957, 963, 78 USPQ2d 1395, 1400 (Fed. Cir. 2006), "trade dress, by its nature, contains distinct elements and is characterized as the combination of various elements to create an overall impression." Although each element is combined with others to form one composite mark, each element retains its separate commercial impression such that the mark as a whole is typically not unitary. Therefore, when a mark contains a combination of trade dress and word/design elements, each element should be examined separately for distinctiveness, except in the rare instance where it is shown that the mark as a whole is unitary. If only one element is inherently distinctive, this is not enough to transform the entire mark into an inherently distinctive, unitary mark. See TMEP §§1213.05-1213.05(h) regarding unitary marks.

1202.02(c)(iii)(A) Functional Matter

Since functional elements of a trade dress mark are unregistrable as a matter of law and cannot form part of the mark, a disclaimer is not an appropriate means of addressing functional matter in a trade dress mark. See In re Water Gremlin Co., 635 F.2d 841, 844, 208 USPQ 89, 91 (C.C.P.A. 1980) ("The examiner's requirement to delete the [functional] design (or show it in dotted lines) was entirely in order."); In re Famous Foods, Inc., 217 USPQ 177, 177 (TTAB 1983) (stating that functional "[f]eatures which are not being claimed as part of applicant's asserted [trade dress] mark should be shown in dotted lines"). Instead, if the mark is not overall functional, an amendment of the drawing must be required to depict any minor or insignificant functional elements in broken or dotted lines. Id.; see TMEP §1202.02(c)(i). However, if the mark is overall functional, registration must be refused under §2(e)(5) of the Trademark Act, 15 U.S.C. §1052(e)(5).

1202.02(c)(iii)(B) Nondistinctive Matter

Sometimes, a trade dress mark, as a whole, is registrable but contains elements that are nondistinctive but capable. See TMEP §1202.02(c)(i)(B). In this situation, if acquired distinctiveness has not been established, the capable elements must be disclaimed because, while they are not source indicators, they are still part of the mark. See 15 U.S.C §§1051-1052, 1056(a), 1127. The disclaimer must be provided regardless of whether the remaining portions of the mark are determined to be registrable. However, where the nondistinctive elements are incapable of acquiring distinctiveness, for example, common or basic shapes of product design or product packaging, such elements are not part of the mark and, therefore, must be depicted in broken or dotted lines rather than disclaimed. See 37 C.F.R. §2.52(b)(4); cf. Traffix Devices v. Mktg. Displays, 532 U.S. 23, 32, 58 USPQ2d 1001, 1006 (2001) (noting that functional features of product design cannot serve as trademarks); In re Famous Foods, Inc., 217 USPQ 177, 177 (TTAB 1983) (noting that functional features of product packaging should be shown in dotted lines).

See TMEP §1212.02(e) regarding disclaimers of unregistrable components in applications to register marks on the Principal Register under §2(f), TMEP §1212.02(i) regarding acquired distinctiveness with respect to incapable matter, and TMEP §§1213.03–1213.03(d) regarding disclaimers of unregistrable components of marks. See also In re Creative Goldsmiths of Wash., Inc., 229 USPQ 766, 768 (TTAB 1986) ("[I]t is within the discretion of an Examining Attorney to require the disclaimer of an unregistrable component (such as a common descriptive, or generic, name) of a composite mark sought to be registered on the Principal Register under the provisions of Section 2(f).").

Regarding disclaimers of unregistrable components in applications to register marks on the Supplemental Register, see In re Water Gremlin Co., 635 F.2d 841, 845 n.6, 208 USPQ 89, 91 n.6 (C.C.P.A. 1980) ("Section 6 is equally applicable to the Supplemental Register."); In re Wella Corp., 565 F.2d 143, 144, 196 USPQ 7, 8 (C.C.P.A. 1977) (mark comprising stylized lettering of BALSAM, with disclaimer of "BALSAM," found registrable on Supplemental Register for hair conditioner and hair shampoo); In re Carolyn’s Candies, Inc., 206 USPQ 356, 360 (TTAB 1980) ("Section 6 of the Trademark Act of 1946, which provides for the disclaimer of ‘unregistrable matter’, does not limit the disclaimer practice to marks upon the Principal Register.").

1202.02(c)(iv) Three-Dimensional Marks

In an application to register a mark with three-dimensional features, the applicant must submit a drawing that depicts the mark in a single rendition. 37 C.F.R. §2.52(b)(2). See TMEP §807.10. To accurately reflect the exact nature of the mark, the mark description must state that the mark is three-dimensional in nature. This three-dimensional feature of the mark must be shown in the supporting specimens of use, in order for the drawing to comprise a substantially exact representation of the mark as actually used. Conversely, a specimen depicting a three-dimensional representation of a mark would not be acceptable to show use for a mark that is described or depicted as a two-dimensional mark. If the applicant believes it cannot adequately display its mark in a single rendition, it may petition the Director to waive the requirement and accept a drawing featuring multiple views of the mark. 37 C.F.R. §2.146(a)(5).

1202.02(d) Trade Dress in §1(b) Applications

Distinctiveness and Product Design

A product design trade dress mark can never be inherently distinctive and is registrable only upon a showing of secondary meaning. Wal-Mart Stores, Inc. v. Samara Bros., 529 U.S. 205, 212, 54 USPQ2d 1065, 1068 (2000); In re Slokevage, 441 F.3d 957, 962, 78 USPQ2d 1395, 1399 (Fed. Cir. 2006); TMEP §1202.02(b)(i). See TMEP §§1202.02(b) and 1202.02(b)(i) regarding distinctiveness of product design trade dress. Therefore, if the mark is comprised of a product design, the examining attorney will refuse registration on the Principal Register on the ground that the proposed mark consists of a nondistinctive product design under §§1, 2, and 45 of the Trademark Act. 15 U.S.C. §§1051, 1052, and 1127. The examining attorney must make this refusal even in an intent-to-use application under 15 U.S.C. §1051(b) for which no allegation of use has been filed.

Distinctiveness and Product Packaging

If the mark comprises product packaging trade dress for goods or services, the examining attorney must determine whether the mark is inherently distinctive. Wal-Mart Stores, Inc. v. Samara Bros., 529 U.S. 205, 212-13, 54 USPQ2d 1065, 1068-69 (2000); Two Pesos, Inc. v. Taco Cabana, Inc., 505 U.S. 763, 773-75, 23 USPQ2d 1081, 1085-86 (1992). See TMEP §§1202.02(b) and 1202.02(b)(ii) regarding distinctiveness of product packaging trade dress. This usually requires consideration of the context in which the mark is used and the impression it would make on purchasers. Generally, no refusal based on lack of inherent distinctiveness will be issued in an intent-to-use application under 15 U.S.C. §1051(b) until the applicant has submitted specimen(s) with an allegation of use under §1(c) or §1(d) of the Trademark Act, 15 U.S.C. §§1051(c) or (d). However, if appropriate, the examining attorney has discretion to issue this refusal before a specimen is submitted. See In re Mars, Inc., 105 USPQ2d 1859 (TTAB 2013) .

Functionality

To determine whether a proposed product design or product packaging trade dress mark is functional, the examining attorney must consider how the asserted mark is used. Generally, in a §1(b) application, the examining attorney will not issue a refusal on the ground that the mark is functional until the applicant has filed an allegation of use under §1(c) or §1(d) of the Trademark Act, 15 U.S.C. §§1051(c) or (d).

In a §1(b) application for which no specimen has been submitted, if the examining attorney’s research indicates that a refusal based on functionality or nondistinctive trade dress will be made, the potential refusal should be brought to the applicant’s attention in the first Office action. This is done strictly as a courtesy. If information regarding this possible ground for refusal is not provided to the applicant before the allegation of use is filed, the USPTO is not precluded from refusing registration on this basis. If the functional nature of the mark is clearly apparent from the drawing, description of the mark, and research conducted by the examining attorney, without the need to await consideration of the specimen, a refusal based on functionality or nondistinctive trade dress may issue prior to the filing of the allegation of use. See In re Mars, Inc., 105 USPQ2d 1859.

1202.02(e) Trade Dress in §44 and §66(a) Applications

Distinctiveness and Product Design

A product design trade dress mark can never be inherently distinctive and is registrable only upon a showing of secondary meaning. Wal-Mart Stores, Inc. v. Samara Bros., 529 U.S. 205, 212-213, 54 USPQ2d 1065, 1068-1069 (2000); In re Slokevage, 441 F.3d 957, 962, 78 USPQ2d 1395, 1399 (Fed. Cir. 2006); TMEP §1202.02(b)(i). See TMEP §§1202.02(b) and 1202.02(b)(i) regarding distinctiveness of product design trade dress. Therefore, if the proposed mark is comprised of a product design, the examining attorney must refuse registration on the Principal Register on the ground that the proposed mark consists of a nondistinctive product design under §§1, 2, and 45 of the Trademark Act. 15 U.S.C. §§1051, 1052, and 1127.

Distinctiveness and Product Packaging

If the mark comprises product packaging trade dress for goods or services, the examining attorney must determine whether the mark is inherently distinctive. Wal-Mart Stores, Inc. v. Samara Bros., 529 U.S. 205, 212-13, 54 USPQ2d 1065, 1068-69 (2000); Two Pesos, Inc. v. Taco Cabana, Inc., 505 U.S. 763, 773-75, 23 USPQ2d 1081, 1085-86 (1992). See TMEP §§1202.02(b) and 1202.02(b)(ii) regarding distinctiveness of product packaging trade dress. Because a specimen of use is not required prior to registration in these cases, it is appropriate for the examining attorney to issue the refusal where the mark on its face, as shown on the drawing and described in the description of the mark, reflects a lack of distinctiveness. Cf. In re Right-On Co., 87 USPQ2d 1152, 1156-57 (TTAB 2008) (noting the propriety of and affirming an ornamentation refusal in a §66(a) application despite the lack of a specimen).

Functionality

If the application itself (i.e., the drawing, the description of the mark, and identification of goods/services) and/or the evidence uncovered during an independent search support that the proposed mark is functional, the examining attorney must issue a refusal of registration on the Principal Register under §2(e)(5). See TMEP §§1202.02(a)–1202.02(a)(viii) regarding functionality.

1202.02(f) Identification of Goods/Services in Trade Dress Applications

1202.02(f)(i) Product Design

Trade dress includes the three-dimensional design or configuration of the product itself. In such cases, the drawing usually depicts the item listed in the identification of goods (e.g., the drawing shows a three-dimensional design of a guitar and the goods are "guitars"). However, sometimes the identification of goods/services in a product-design application includes different or unrelated products or services that are, on their face, inconsistent with the product design depicted on the drawing (e.g., the drawing shows a three-dimensional design of a guitar and the identification includes "drums and pianos" or "retail music stores"). This presents an issue of "inconsistent goods." In rare cases, slight variations are acceptable if the products have a "consistent overall look" such that the changes do not alter the distinctive characteristics and the trade dress conveys a "single and continuing" commercial impression. Cf. Rose Art Indus., Inc. v. Swanson, 235 F.3d 165, 173, 57 USPQ2d 1125, 1131 (3d Cir. 2000) (quoting Rose Art Indus., Inc. v. Raymond Geddes & Co., 31 F. Supp. 2d 367, 373, 49 USPQ2d 1180, 1184 (D.N.J. 1998), rev’d on other grounds sub nom. Rose Art Indus., Inc. v. Swanson, 235 F.3d 165, 57 USPQ2d 1125 (3d Cir. 2000)) (stating that trade dress protection for a series or line of products or packaging depends on them having a consistent overall look and remanding for proper application of the standard); The Walt Disney Co. v. GoodTimes Home Video Corp., 830 F. Supp. 762, 766, 29 USPQ2d 1047, 1050 (S.D.N.Y. 1993) (setting forth the "consistent overall look" standard and applying it to a claim of protection for a line of packaging trade dress). For example, the drawing of a three-dimensional design of a guitar might reasonably reflect the consistent overall look of both guitars and ukuleles, which can share a very similar shape and appearance.

Section 1(a) Applications: Where the identification of goods/services, the description of the mark, or other evidence of record indicate that not all of the goods/services in the identification are represented in the three-dimensional mark depicted on the drawing, the examining attorney must refuse registration on the ground that the mark fails to function as a mark for the inconsistent goods/services. The statutory bases for the refusal are §§1, 2, and 45 of the Trademark Act, 15 U.S.C. §§1051, 1052, and 1127 for trademarks and §§1, 2, 3, and 45, 15 U.S.C. §§1051, 1052, 1053, and 1127, for service marks.

The examining attorney must specify the inconsistent goods/services subject to refusal and request evidence and/or additional specimens to substantiate use of the mark in connection with the inconsistent goods/services. 37 C.F.R. §2.61(b). The applicant may overcome the refusal by providing (1) additional specimens showing the inconsistent goods in the shape of the design depicted on the drawing or (2) sufficient evidence that the three-dimensional product design or configuration mark functions as a source indicator in connection with the inconsistent goods/services listed in the identification. The applicant may also delete the inconsistent goods/services.

The examining attorney must also examine the drawing and the specimen to determine whether the specific three-dimensional product design mark depicted on the drawing is a substantially exact representation of the mark shown on the specimen. TMEP §807.12(a).

Section 1(b) Applications: In a §1(b) application for which no specimen has been submitted, if the examining attorney anticipates that the applicant may not be able to show proper trademark use of the product design mark for the inconsistent goods/services, the potential refusal should be brought to the applicant’s attention in the first action issued by the USPTO. This advisory is given strictly as a courtesy. If information regarding the possible ground for refusal is not provided to the applicant before the allegation of use is filed, the USPTO is not precluded from refusing registration after submission of the use allegation. When the record indicates that the product design would not be perceived as a mark for the inconsistent goods/services, the examining attorney may make the failure to function as a mark refusal prior to the filing of the allegation of use.

When an amendment to allege use under 15 U.S.C. §1051(c), or a statement of use under 15 U.S.C. §1051(d), is submitted in connection with a §1(b) application, the examining attorney should follow the procedures discussed above for product-design trade dress in §1(a) applications.

Section 44 and Section 66(a) Applications: A specimen is not required in a §44 or §66(a) application to show use of the proposed mark in commerce in connection with the identified goods/services. However, since these applications are otherwise examined under the same standards as applications under §1, it is appropriate for the examining attorney to refuse registration on the ground that the mark fails to function as a mark for the inconsistent goods/services where the drawing, the description of the mark, the identification of goods/services, or other evidence indicates that the identification includes goods/services that are, on their face, inconsistent with the specific three-dimensional product design depicted on the drawing (e.g., a three-dimensional toy car product design for "toy boats"). The statutory bases for the refusal are §§1, 2, and 45 of the Trademark Act, 15 U.S.C. §§1051, 1052, and 1127, for trademarks and §§1, 2, 3, and 45, 15 U.S.C. §§1051, 1052, 1053, and 1127, for service marks. Cf. In re Right-On Co., 87 USPQ2d 1152, 1156-57 (TTAB 2008) (noting the propriety of and affirming an ornamentation refusal, which is otherwise typically specimen based, in a §66(a) application). The examining attorney must also request evidence to substantiate that the proposed mark could function as a source indicator in connection with the inconsistent goods/services.37 C.F.R. §2.61(b). This is not a requirement for specimens. To overcome the refusal, the applicant must provide evidence showing that the three-dimensional product design or configuration mark functions as a source indicator in connection with the inconsistent goods/services listed in the identification. Absent such a showing, the identification of goods/services must be amended to delete the inconsistent goods/services.

1202.02(f)(ii) Product Packaging

The three-dimensional packaging or wrapping in which a product is sold also constitutes trade dress. While a product-design drawing typically depicts the shape or configuration of the product listed in the identification of goods, product packaging can be in any shape or form that serves as packaging for the listed goods. For example, if the drawing depicts a three-dimensional computer mouse, the description of the mark states that the trade dress is product packaging, and the identified goods are "cosmetics and hair brushes," it is conceivable that the goods could be sold in packaging shaped like a computer mouse, and it does not mean that the goods themselves must be in the shape of a computer mouse. However, where the drawing depicts a three-dimensional computer mouse, the description of the mark states that the trade dress is product design or configuration, the identified goods are "cosmetics and hair brushes," and the goods are not in the shape of a computer mouse, this presents a potential issue of "inconsistent goods." See TMEP §1202.02(f)(i).

In most cases, the specific three-dimensional product packaging depicted on the drawing houses the product being sold (e.g., the drawing shows a three-dimensional bottle and the goods are "wine"). However, in rare cases, the identification of goods may include products (or services) that appear, on their face, to be inconsistent with the type of packaging design depicted on the drawing (e.g., a drawing showing a three-dimensional bottle design for "automobiles" or other "inconsistent goods" that are not likely to be sold in bottles). In such cases, where the drawing, the description of the mark, the specimen, or any other evidence of record does not support that the three-dimensional product packaging depicted on the drawing would serve as packaging for the goods, the applicant must provide sufficient evidence that the proposed trade dress serves as the actual shape of the packaging for the inconsistent goods or has a "consistent overall look" across all the goods listed in the identification. Cf. Rose Art Indus., Inc. v. Swanson, 235 F.3d 165, 173, 57 USPQ2d 1125, 1131 (3d Cir. 2000) (quoting Rose Art Indus., Inc. v. Raymond Geddes & Co., 31 F. Supp. 2d 367, 373, 49 USPQ2d 1180, 1184 (D.N.J. 1998) , rev’d on other grounds sub nom. Rose Art Indus., Inc. v. Swanson, 235 F.3d 165, 57 USPQ2d 1125 (3d Cir. 2000)) (stating that trade dress protection for a series or line of products or packaging depends on them having a consistent overall look and remanding for proper application of the standard); The Walt Disney Co. v. GoodTimes Home Video Corp., 830 F. Supp. 762, 766, 29 USPQ2d 1047, 1050 (S.D.N.Y. 1993) (setting forth the "consistent overall look" standard and applying it to a claim of protection for a line of packaging trade dress). In this situation, the same analysis, refusal, and requirements that apply to product design also apply to product packaging. See TMEP §1202.02(f)(i).
